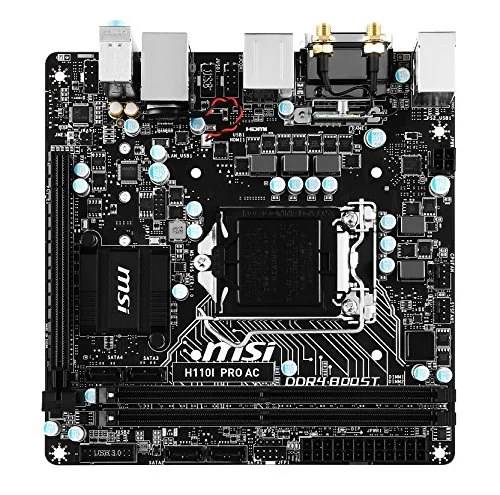

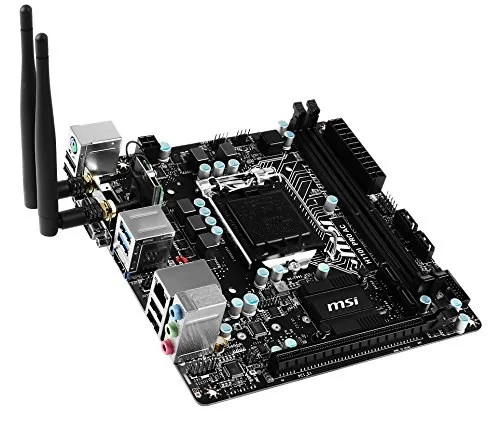

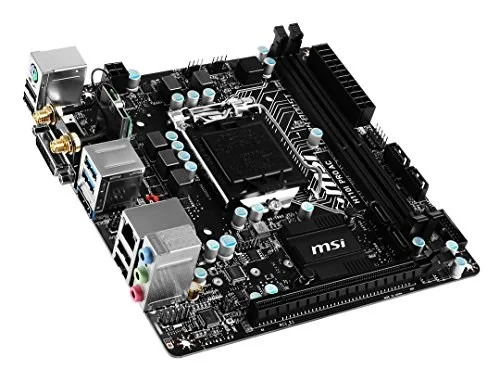

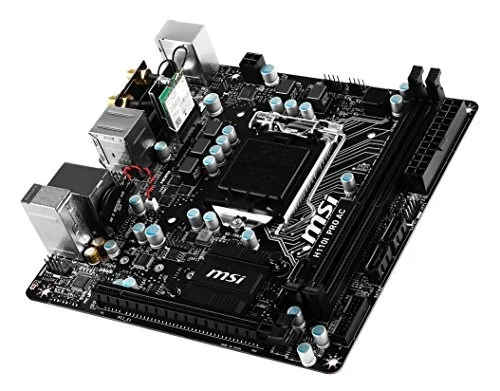

MSI H110I PRO AC LGA1151 Mini-ITX DDR4 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI H110I PRO AC is a Mini-ITX motherboard for LGA1151. It supports DDR4 memory up to 2133 MT/s (OC).
- Supports 6th Gen Intel CoreTM / Pentium / Celeron processors for LGA 1151 socket
- Memory: 2x DDR4-2133 DIMM Slots, Dual Channel, Max Capacity of 32GB
- Chipset: Intel H110/ Form Factor: Mini-ITX
- Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC

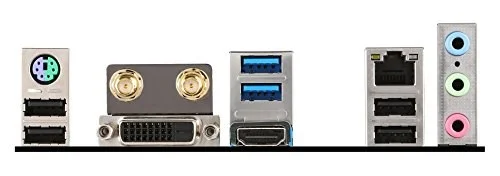

- Ports: 4x USB 3.1 Ports (2 Gen1 rear, 2 Gen1 via header), 6x USB 2.0 Ports (4 rear, 2 via header), 1x PS/2 Keyboard/Mouse Combo Port, 1x HDMI Port, 1x DVI-D Port, 1x RJ45 LAN Port, Audio I/O Jacks
- Wi-Fi expansion module with Intel Dual Band Wireless-AC 8260 chip; Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867Mbps speed
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | H110I PRO AC |
| Launch Date | |
| CPU Socket | LGA1151 |
| Chipset Model | Intel H110 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-2133 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | H110I PRO AC |
| SKU Code | H110I PRO AC |
| GTIN / EAN | 824142127513 |
