MSI H270 PC MATE LGA1151 ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

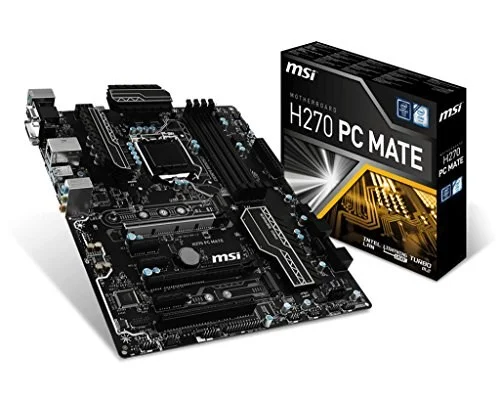

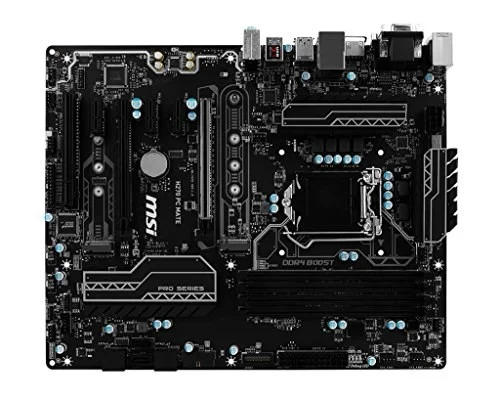

The MSI H270 PC MATE is a ATX motherboard for LGA1151. It supports DDR4 memory up to 2400 MT/s (OC).
- Supports 7th / 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket
- Supports DDR4-2400 Memory
- DDR4 Boost: Give your DDR4 memory a performance boost
- Audio Boost: Reward your ears with studio grade sound quality for a HI-FI experience
- EZ Debug LED: Easiest way to troubleshoot
- Twin Turbo M.2: Delivering Speeds Up to 32Gb/s, Intel Optane Memory Ready
- M.2 Genie: Setting up RAID for M.2 much easier and faster
- Lightning USB: Double bandwidth, supports USB 3.1 Gen2 Type A + Type C
- X-Boost: Great tool to boost your USB & Storage performance
- Double ESD Protection: Double layer grounding motherboard mounting holes
- Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
- Click BIOS: Secure and Reliable UEFI BIOS solution
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | H270 PC MATE |
| Launch Date | January 2017 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel H270 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

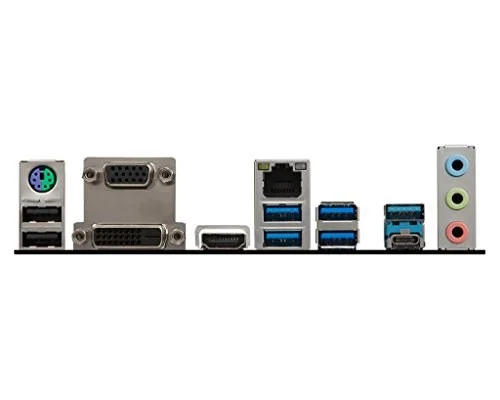

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | H270 PC MATE |
| SKU Code | H270 PC MATE |
| GTIN / EAN | 824142138304 |
