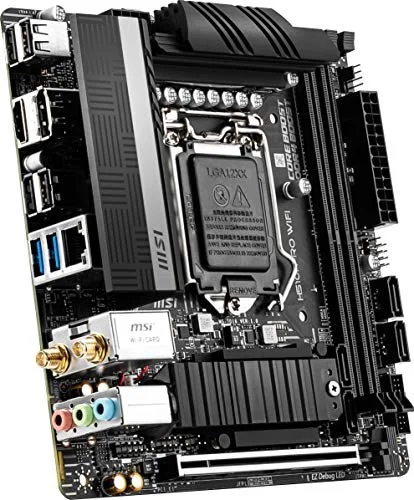

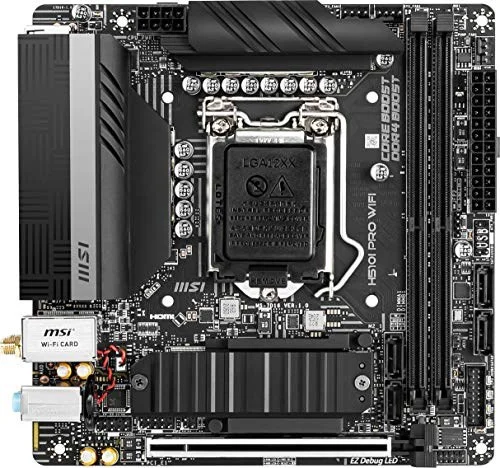

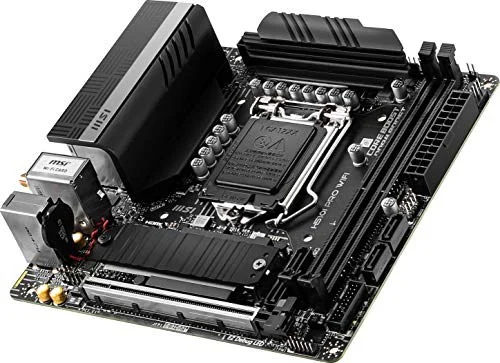

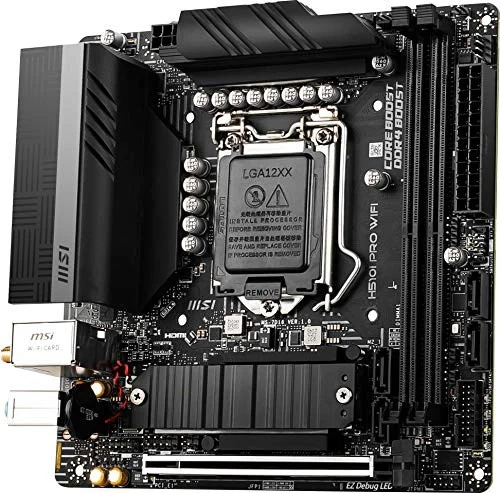

MSI H510I PRO WiFi LGA1200 Mini-ITX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI H510I PRO WiFi is a Mini-ITX motherboard for LGA1200. It supports DDR4 memory up to 3200 MT/s (OC).
- Supports 11Th And 10Th Gen Intel Core/Pentium/Celeron Processors For LGA 1200 Socket
- Supports DDR4 Memory, Up To 3200(Max) Mhz
- Core Boost: With Premium Layout And Digital Power Design To Support More Cores And Provide Better Performance
- Turbo M.2: Running At PCI-E Gen3 X4 Maximizes Performance For Nvme Based Ssds
- Steel Armor: Protecting VGA Cards Against Bending And EMI For Better Performance, Stability And Strength
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | H510I PRO WIFI |
| Launch Date | February 2021 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel H510 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | H510I PRO WIFI |
| SKU Code | H510I PRO WIFI |
| GTIN / EAN | 824142243640 |
