Description
The MSI MAG B460 Tomahawk is a ATX motherboard for LGA1200. It supports DDR4 memory up to 2933 MT/s (OC).
- Supports 10Th Gen Intel Core / Pentium Celeron Processors For LGA 1200 Socket
- Supports DDR4 Memory, Up To 2933Mhz

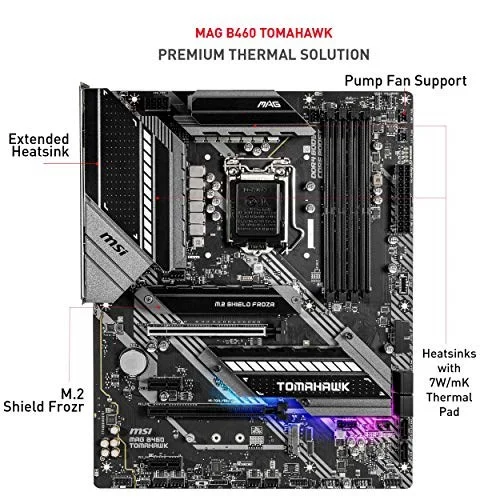

- Premium Thermal Solution: Extended Heatsink Design And M. 2 Shield Frozr Are Built For High Performance System And Non-Stop Works

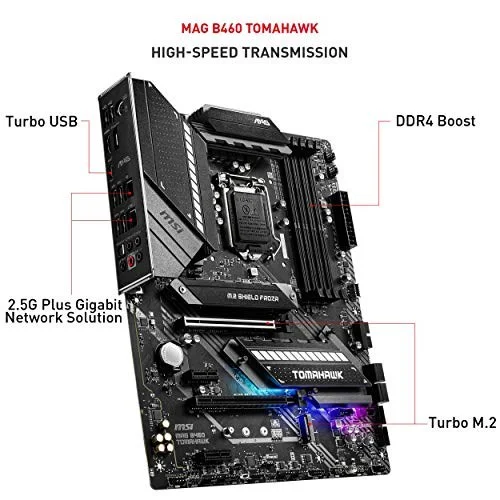

- Lightning USB 20G: Powered By Asmedia 3241 USB 3. 2 Gen2x2 Controller, Offering Never Before Seen USB Speeds Up To 20Gb/S With USB Type-C
- Latest Network Solution: Onboard 2. 5G LAN Plus Gigabit LAN And Latest Wi-Fi 6 Solution Deliver The Best Online Experience Without Lag
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | MAG B460 Tomahawk 7C81-003R |
| Launch Date | May 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel B460 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

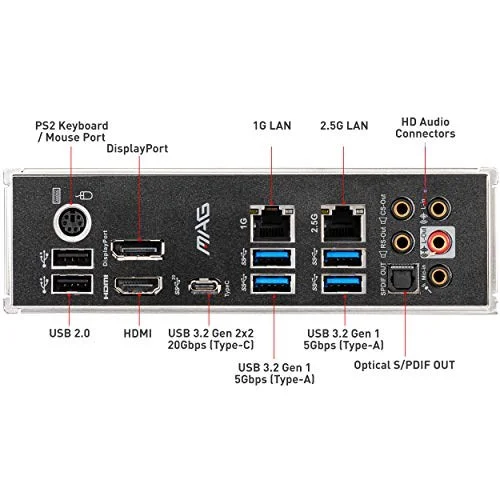

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MAG B460 Tomahawk |
| SKU Code | MAG B460 Tomahawk |
| GTIN / EAN | 824142218112 |
