MSI MAG B460M Mortar WiFi LGA1200 Micro-ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

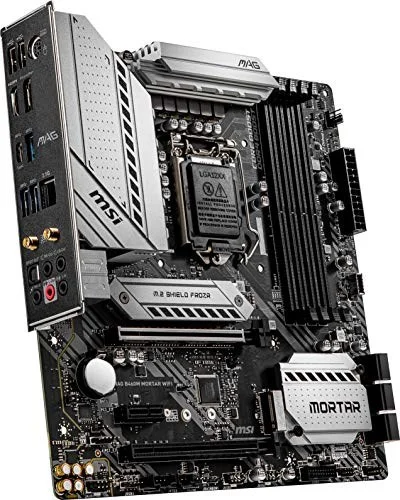

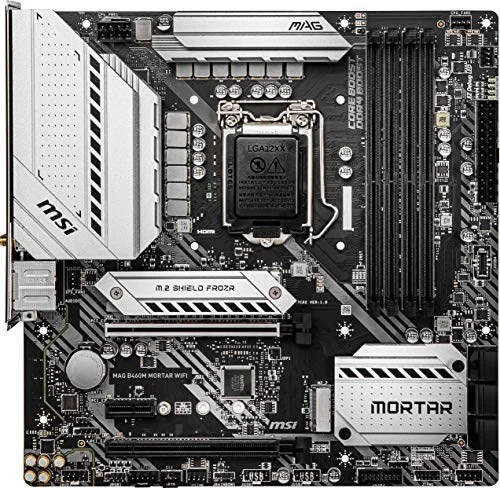

The MSI MAG B460M Mortar WiFi is a Micro-ATX motherboard for LGA1200. It supports DDR4 memory up to 2933 MT/s (OC).
- Supports 10Th Gen Intel Core / Pentium Celeron Processors For LGA 1200 Socket
- Supports DDR4 Memory, Up To 2933Mhz
- Turbo M. 2: Running At PCI-E Gen3 X4 Maximizes Performance For Nvme Based Ssds
- Pre-Installed I/O Shielding: Better EMI Protection And More Convenience For Installation
- Intel Turbo USB 3. 2 Gen 1: Powered By Intel USB 3. 2 Gen 1 Controller, Turbo USB Ensures An Uninterrupted Connection With More Stability And Fastest USB Speeds
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | MAG B460M Mortar WiFi 7C82-004R |
| Launch Date | May 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel B460 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

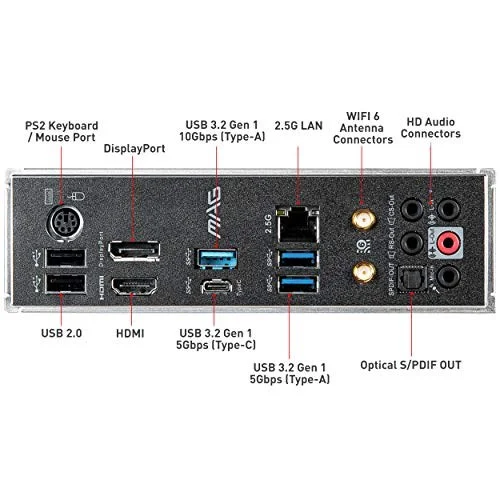

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MAG B460M Mortar WiFi |
| SKU Code | MAG B460M Mortar WiFi |
| GTIN / EAN | 824142216538 |
