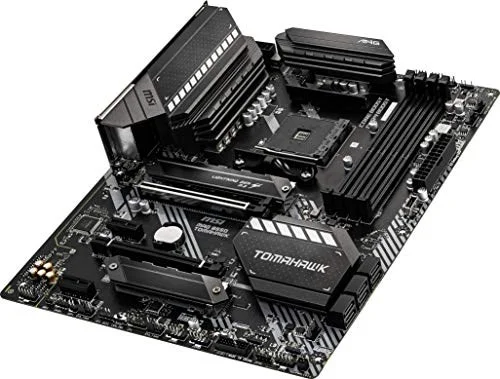

MSI MAG B550 TOMAHAWK AM4 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI MAG B550 TOMAHAWK is a ATX motherboard for AM4. It supports DDR4 memory up to 4866 MT/s (OC).
- Support For 3Rd Gen AMD Ryzen Processors And Future AMD Ryzen Processors With BIOS Update
- Supports Dual Channel DDR4 Memory Up To 128 GB (4866 Mhz)
- On-Board Dual LAN: 2.5G LAN Plus Gigabit LAN
- MYSTIC LIGHT: RGB LED Lighting And Extendable Pin Headers – 16.8 Million Colors / 29 Effects
- AUDIO BOOST Rewards Your Ears With Studio Grade Sound Quality For Immersive Gaming Experiences
- Premium Thermal Solution: Aluminum Cover With Additional Choke Thermal Pad Rated For 7W/Mk And PCB With 2Oz Thickened Copper
- Lightning Fast Game Experience: Pcie 4.0, Lightning Gen 4 M.2 With M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | MAG B550 TOMAHAWK B550TMHWK 7C91-001R |
| Launch Date | July 2020 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B550 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4533 / DDR4-4600 / DDR4-4800 / DDR4-4866 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | 2.5GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

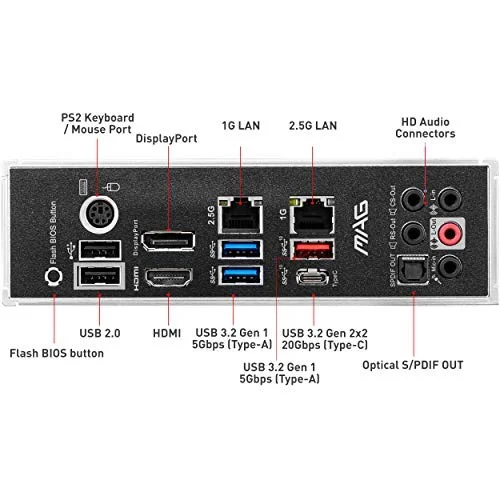

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MAG B550 TOMAHAWK |
| SKU Code | MAG B550 TOMAHAWK |
| GTIN / EAN | 824142217627 |
