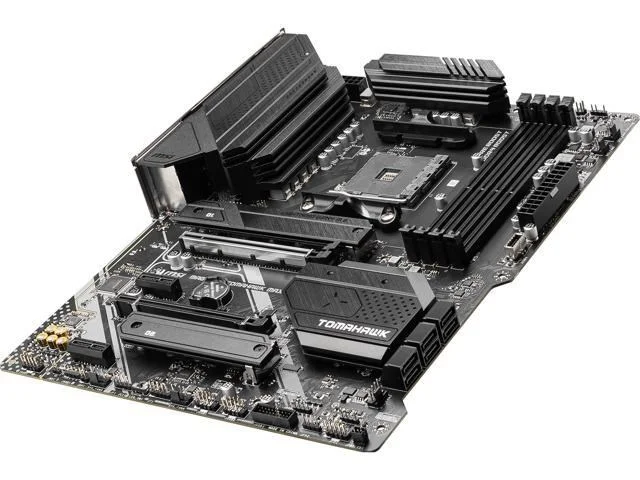

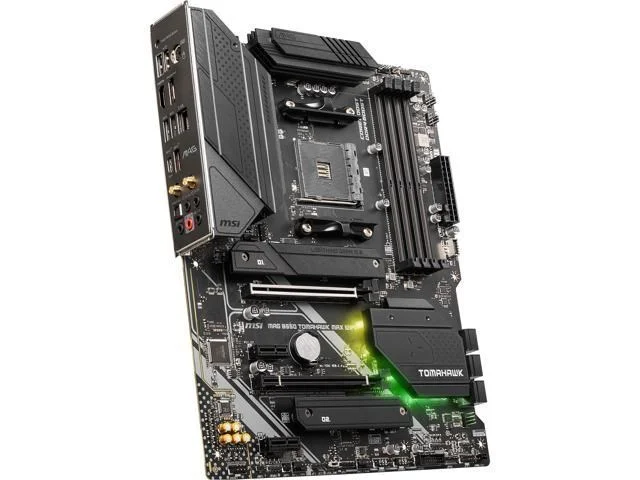

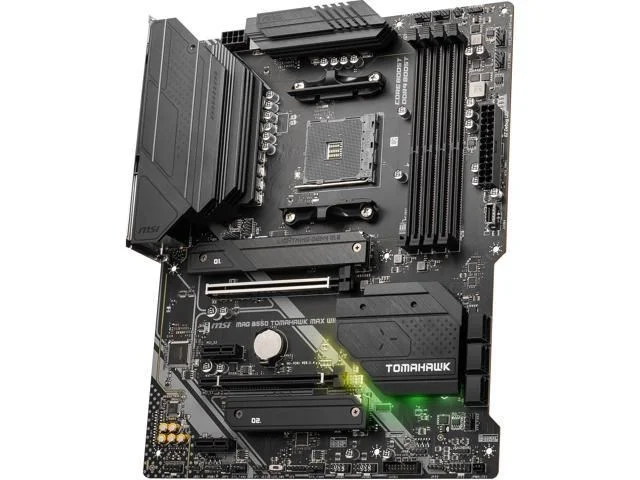

MSI MAG B550 TOMAHAWK MAX WIFI AM4 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
£42.30 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI MAG B550 TOMAHAWK MAX WIFI is a ATX motherboard for AM4. It supports DDR4 memory up to 5100 MT/s (OC).
- MSI MAG B550 TOMAHAWK MAX WIFI AM4 AMD B550 SATA 6Gb/s ATX AMD Motherboard Number of Memory Slots: 4x288pin (DDR4) Memory Standard: DDR4 5100+ (OC) PCI Express 3.0 x16: 1 x PCI Express 3.0 x16 Onboard Video Chipset: Supported only by CPU with integrated graphic Audio Chipset: Realtek ALC897 PCI Express x1: 2 x PCI Express 3.0 x1 Audio Channels: 7.1 Channels Max LAN Speed: 10/100/1000/2500Mbps
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | MAG B550 TOMAHAWK MAX WIFI |
| Launch Date | |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B550 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4533 / DDR4-4600 / DDR4-4800 / DDR4-4866 / DDR4-5000 / DDR4-5100 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MAG B550 TOMAHAWK MAX WIFI |
| SKU Code | MAG B550 TOMAHAWK MAX WIFI |
| GTIN / EAN | 824142286685 |
