MSI MAG B550M MORTAR AM4 Micro-ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

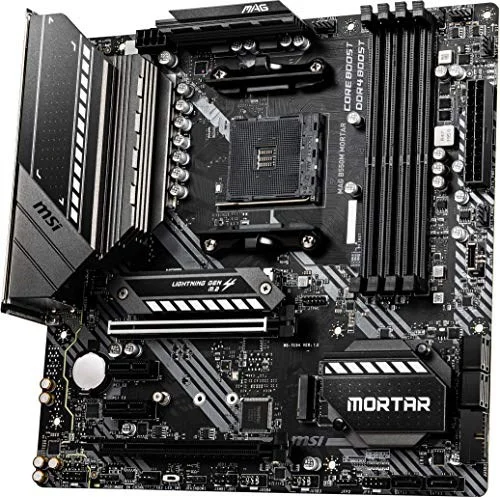

The MSI MAG B550M MORTAR is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 4400 MT/s (OC).
- Support For 3Rd Gen AMD Ryzen Processors And Future AMD Ryzen Processors With BIOS Update
- Supports Dual Channel DDR4 Memory Up To 128 GB (4400 Mhz)
- 2.5G LAN With LAN Manager
- Lightning Fast Game Experience: Pcie 4.0, Lightning Gen 4 M.2 With M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
- AUDIO BOOST Rewards Your Ears With Studio Grade Sound Quality For Immersive Gaming Experiences

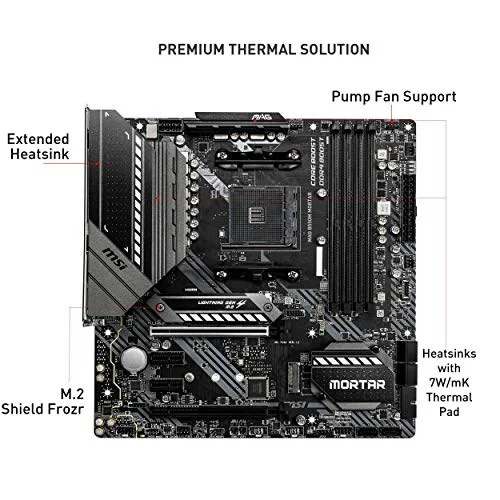

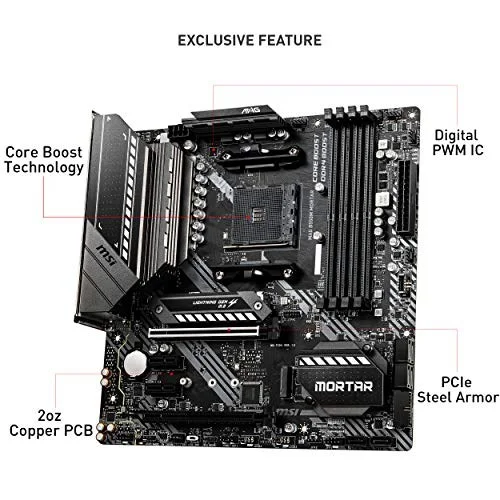

- Premium Thermal Solution: Extended Heatsink With Additional Choke Thermal Pad Rated For 7W/Mk And PCB With 2Oz Thickened Copper
- Pre-Installed I/O Shielding For Convenience And Protection From Electrostatic Discharge
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | MAG B550M MORTAR B550MMOR 7C94-001R 7C94-006R |
| Launch Date | July 2020 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B550 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | 2.5GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MAG B550M MORTAR |
| SKU Code | MAG B550M MORTAR |
| GTIN / EAN | 824142217368 |
