MSI MAG B560 Tomahawk WiFi LGA1200 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
$29.99 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

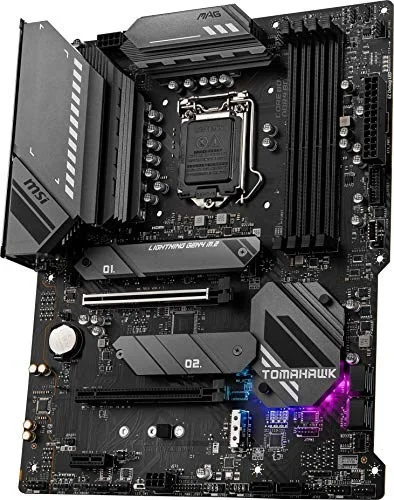

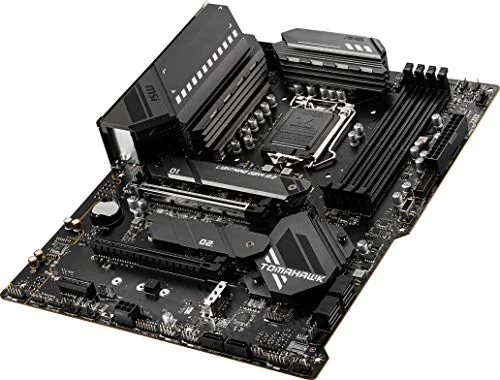

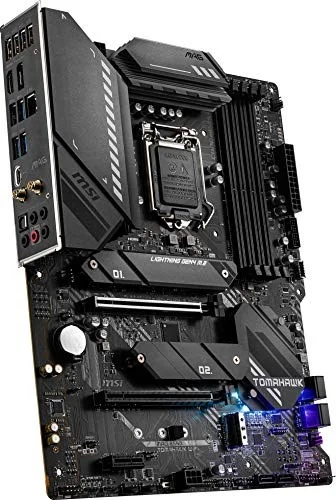

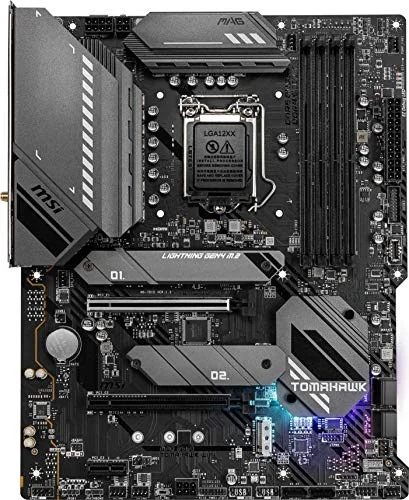

The MSI MAG B560 Tomahawk WiFi is a ATX motherboard for LGA1200. It supports DDR4 memory up to 5066 MT/s (OC).
- Supports 11Th And 10Th Gen Intel Core/Pentium/Celeron Processors For LGA 1200 Socket
- Supports DDR4 Memory
- Premium Thermal Solution: Extended Heatsink Design And M.2 Shield Frozr Are Built For High Performance System And Non-Stop Works
- 2.5G LAN And Intel Wi-Fi 6E Solution: Upgraded Network Solution For Professional And Multimedia Use. Delivers A Secure, Stable And Fast Network Connection
- Lightning M.2: Running At Pcie Gen4 X4 Maximizes Performance For Nvme Based Ssds
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | MAG B560 TOMAHAWK WIFI |
| Launch Date | February 2021 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel B560 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-4000 / DDR4-4266 / DDR4-4600 / DDR4-5066 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key (Intel 11th Gen only), 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | 2.5GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

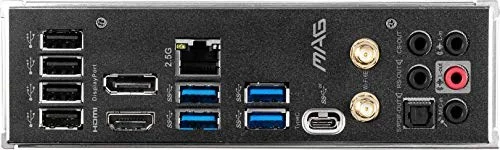

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MAG B560 TOMAHAWK WIFI |
| SKU Code | MAG B560 TOMAHAWK WIFI |
| GTIN / EAN | 824142241028 |
