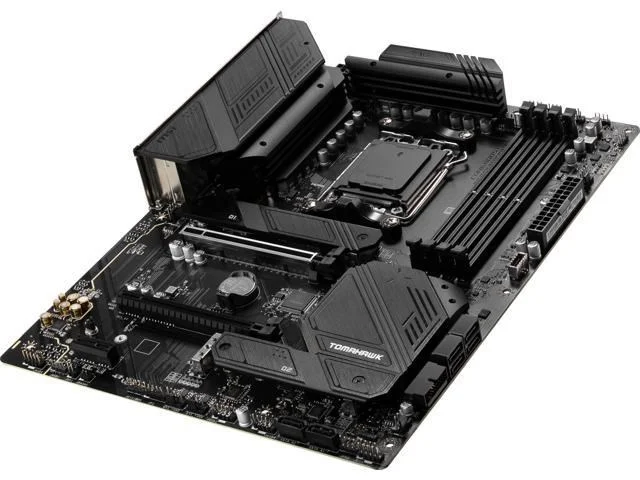

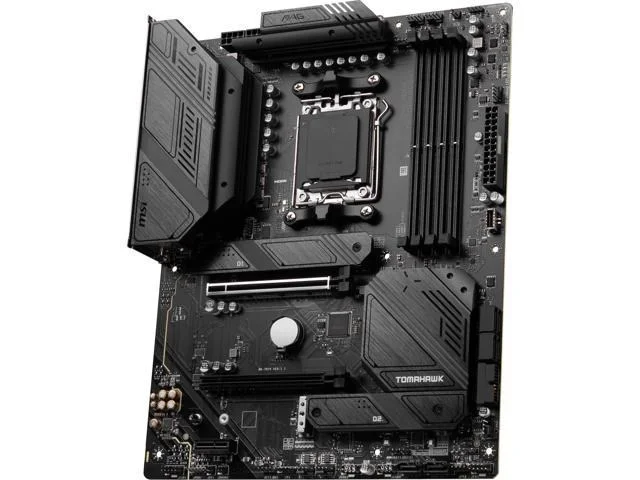

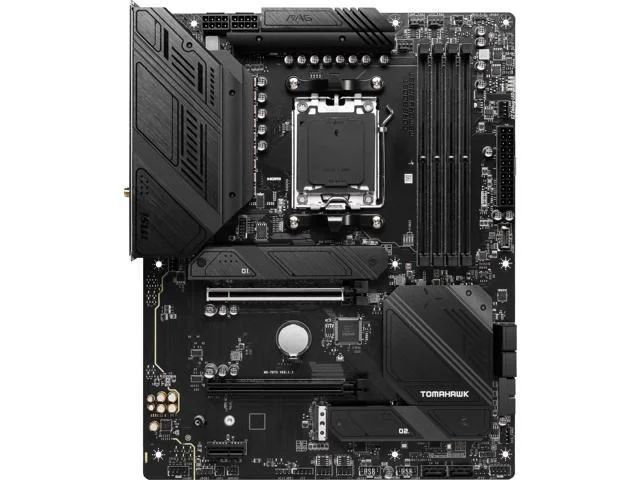

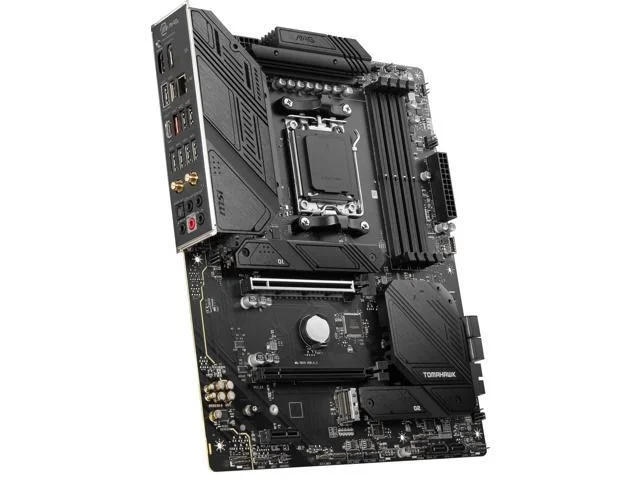

MSI MAG B650 TOMAHAWK WIFI

The MSI MAG B650 TOMAHAWK WIFI is a ATX motherboard for AM5. It supports DDR5 memory up to 6600 MT/s (OC).

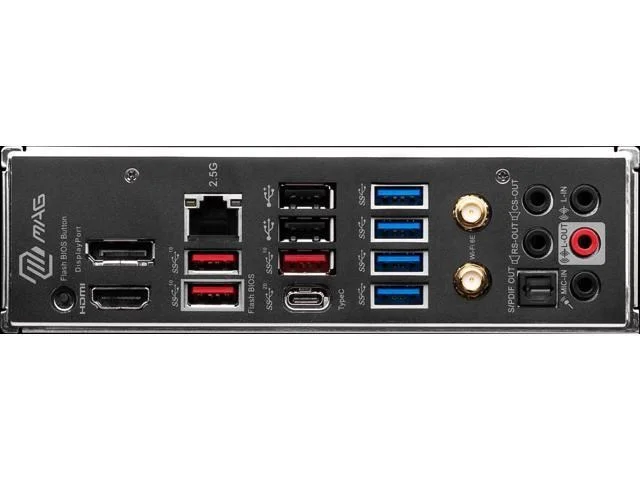

• AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors ChipsetAMD B650Memory4 x DIMM, Max. 128GB, DDR5 5200MHz upto 6600MHz (OC) Supports AMD EXTended Profiles for Overclocking (EXPO)Onboard Graphics Outputs1 x HDMI port1 x DisplayPortPCI Slots2x PCI-E x16 slotSupport x16/ x41x PCI-E x1 slotPCI_E1 PCIe 4.0 supports up to x16 (From CPU)PCI_E2 PCIe 4.0 supports up to x4 (From Chipset)PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)StorageTotal supports 3 x M.2 slots and 6 x SATA 6Gb/s portsM.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesNetworking1 x 2.5Gb Ethernet WIFI 6EBluetoothAudioRealtek ALC4080 CodecConnectivityDisplayPort 1.42.5G LAN Port2x USB 2.0 Port4x USB 3.2 Gen 1 5Gbps Type-AWi-Fi / Bluetooth AntennaHD Audio ConnectorsFlash BIOS ButtonHDMI 2.1 Port3x USB 3.2 Gen 2 10Gbps Type-AUSB 3.2 Gen 2x2 20Gbps Type-COptical S/PDIF OUTInternal Ports1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan6x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)2x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.02x USB 3.2 Gen1 Type A1x USB 3.2 Gen2 Type CForm FactorATX - 243.84mmx304.8mm
