MSI MAG B660 TOMAHAWK WIFI LGA1700 ATX DDR5 192 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

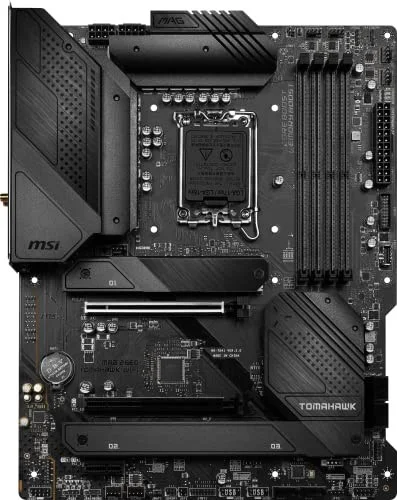

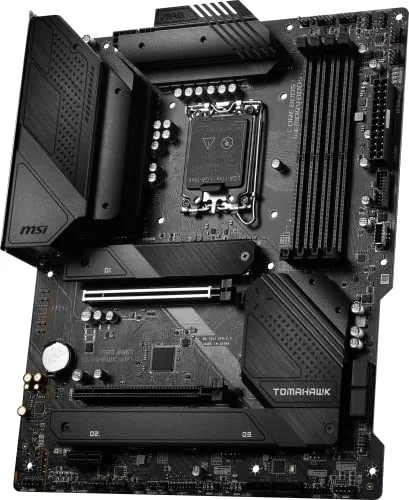

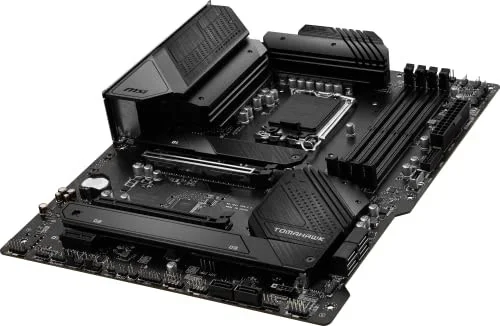

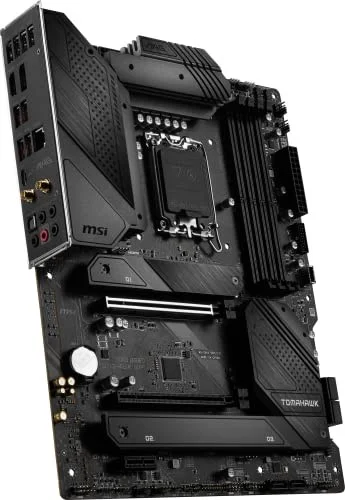

The MSI MAG B660 TOMAHAWK WIFI is a ATX motherboard for LGA1700. It supports DDR5 memory up to 6200 MT/s (OC).
- 12TH GEN CORE, HIGH PERFORMANCE - The MAG B660 TOMAHAWK WIFI DDR4 employs a 12 Duet Rail Power System (60A, DrMOS) VRM for the Intel B660 chipset (LGA 1700, 12th Gen Core ready) with Core Boost architecture for high CPU core count power demands
- INTEGRATED COOLING - VRM cooling features 7W/mK MOSFET thermal pads and an extended heatsink; Includes chipset heatsink, M.2 Shield Frozr, a dedicated pump-fan cooling header & 6-layer PCB with 2 oz. thickened copper
- TRIPLE M.2 CONNECTORS - Storage includes 2 x M.2 Gen4 x4 64Gb/s slots and 1 x M.2 Gen4 x2 slot (Intel Optane supported) with Shield Frozr to prevent thermal throttling during hyper-fast SSD access

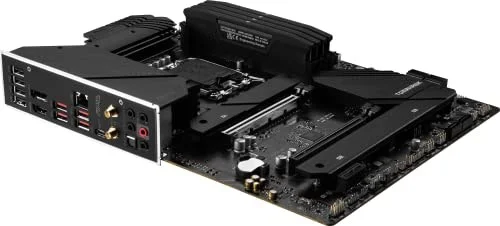

- WI-FI 6 CONNECTIVITY - Network hardware includes an Intel Wi-Fi 6 module with Bluetooth 5.2 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2x2 Type-C (20Gbps), HDMI 2.1 & DisplayPort 1.4, and 7.1 HD Audio with Audio Boost (supports S/PDIF output)
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | MAG B660 TOMAHAWK WIFI 7D41-012R |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel B660 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MAG B660 TOMAHAWK WIFI |
| SKU Code | MAG B660 TOMAHAWK WIFI |
| GTIN / EAN | 4719072924942 |
