MSI MAG B760M MORTAR WIFI LGA1700 Micro-ATX DDR5 192 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

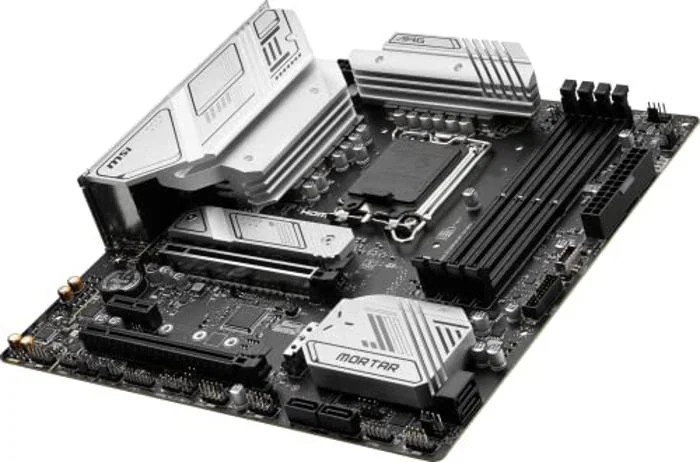

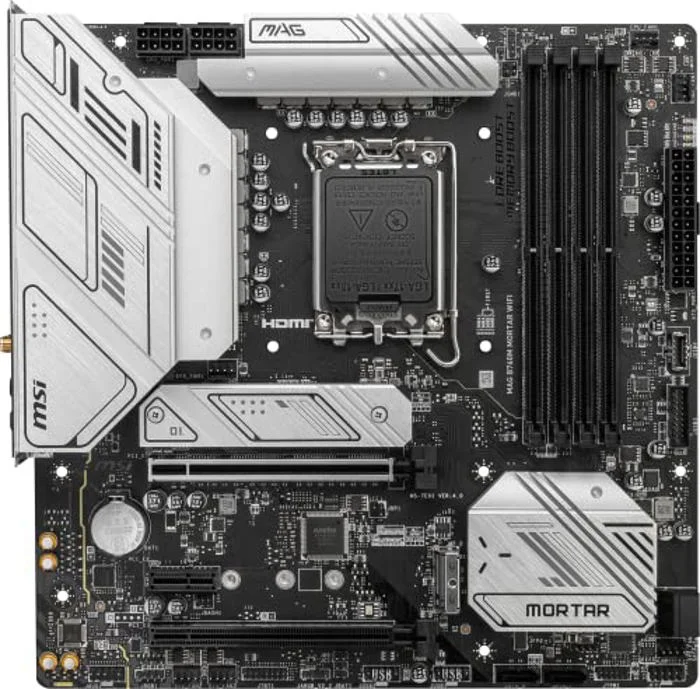

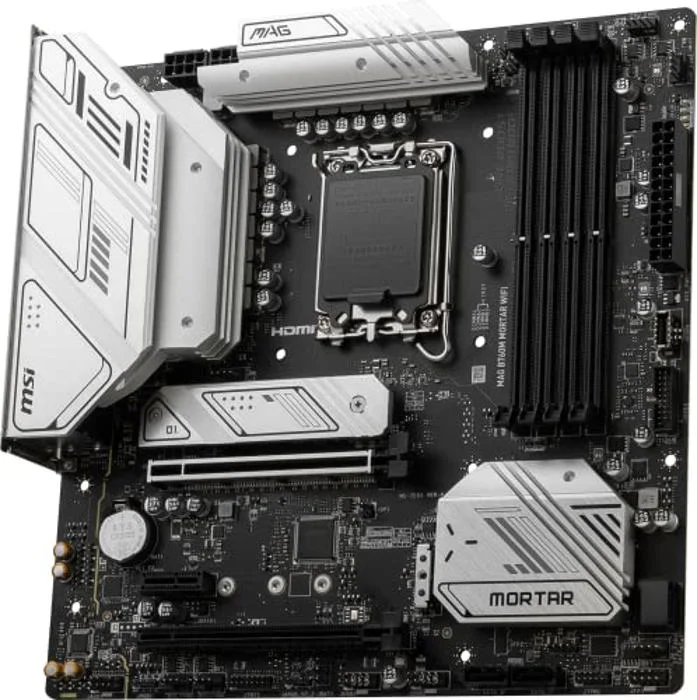

The MSI MAG B760M MORTAR WIFI is a Micro-ATX motherboard for LGA1700. It supports DDR5 memory up to 7000 MT/s (OC).
- MSI MAG B760M MORTAR WIFI LGA 1700 (Intel12th&13th Gen) SATA 6Gb/s Micro ATX Motherboard (PCIe 5.0, DDR5,2xM.2 Slots,WiFi 6,Intel 2.5Gb LAN) Memory Standard: DDR5 5600 Number of Memory Slots: 4x288pin (DDR5) Audio Chipset: Realtek ALC897 PCI Express 5.0 x16: 1 x PCI Express 5.0 x16 Max LAN Speed: 2.5Gbps CPU Type: Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold Maximum Memory Supported: 128GB Channel Supported: Dual Channel
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | MAG B760M MORTAR WIFI |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel B760 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |

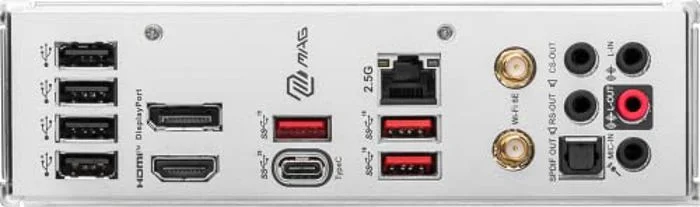

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MAG B760M MORTAR WIFI |
| SKU Code | MAG B760M MORTAR WIFI |
| GTIN / EAN | 824142310212 |
