Description

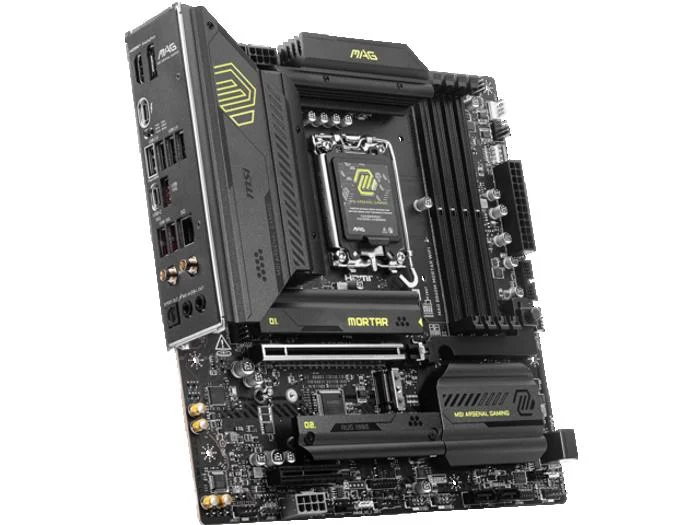

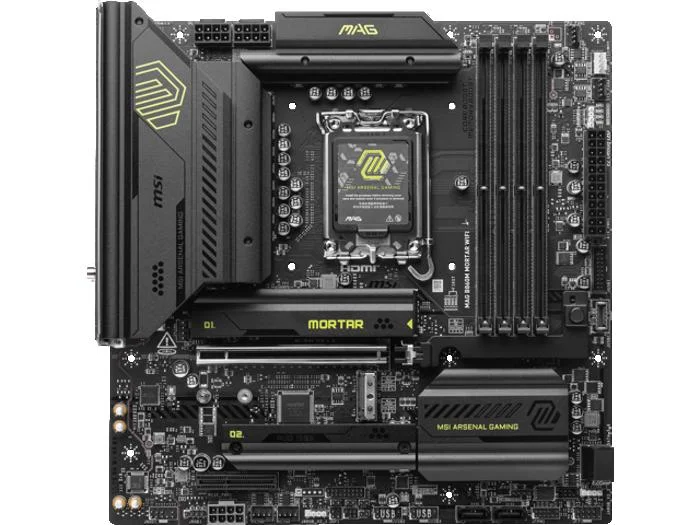

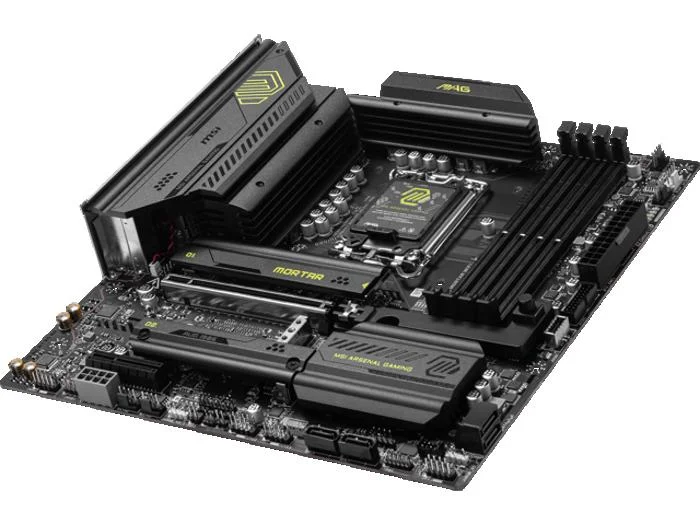

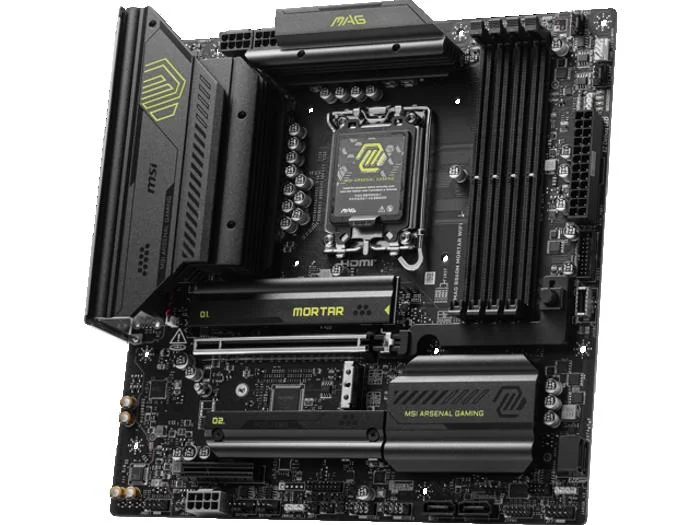

The MSI MAG B860M MORTAR WIFI is a Micro-ATX motherboard for LGA1851. It supports DDR5 memory up to 9200 MT/s (OC).
- MSI MAG B860M MORTAR WIFI LGA 1851 Intel B860 SATA 6Gb/s DDR5 CI-E x16 slot M.2 5Gbps LAN Wi-Fi 7 Micro ATX Motherboard Memory Standard: Up to DDR5 9200+ MT/s (OC) Number of Memory Slots: 4x288pin (DDR5) PCI Express 5.0 x16: 1 x PCI Express 5.0 x16 Max LAN Speed: 5Gbps CPU Type: Intel Core Ultra Processors (Series 2) PCI Express x4: 1 x PCI Express 4.0 x4 M.2: 1 x M.2 (Support PCIe 5.0 x4) / 2 x M.2 (Support PCIe 4.0 x4) Audio Channels: 7.1 Channels
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | MAG B860M MORTAR WIFI |
| Launch Date | January 2025 |
| CPU Socket | LGA1851 |
| Chipset Model | Intel B860 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 / DDR5-7900 / DDR5-7950 / DDR5-8000 / DDR5-8200 / DDR5-8266 / DDR5-8400 / DDR5-8600 / DDR5-9200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 7 (802.11be) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MAG B860M MORTAR WIFI |
| SKU Code | MAG B860M MORTAR WIFI |
| GTIN / EAN | 824142393895 |
