MSI MAG X570 TOMAHAWK WIFI AM4 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

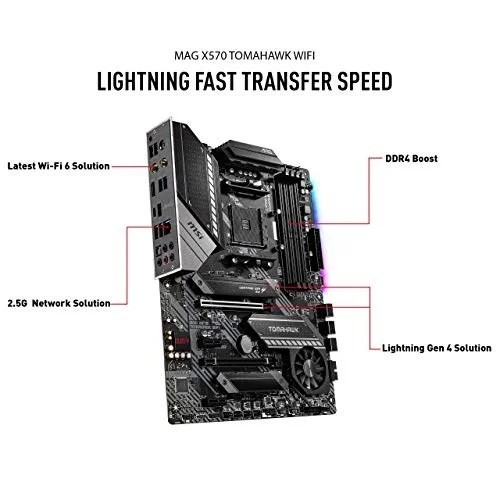

The MSI MAG X570 TOMAHAWK WIFI is a ATX motherboard for AM4. It supports DDR4 memory up to 4600 MT/s (OC).
- 128GB Dual Channel DDR4-SDRM Motherboard
- ATX Form Factor
- Chipset: AMD X570
- Ports: 3 X USB3.2 Gen 2 Type-A, 1 X USB3.2 Gen 2 Type-C, 1 X Ethernet LAN RJ-45, 1 X HDMI, 2 X USB3.2 Gen 1 Type-A, 2 X USB2.0
- Supports Windows 10 X64 Operating System
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | MAG X570 TOMAHAWK WIFI 911-7C84-001 X570 TOMAHAWK WIFI X570TOMAWIFI MAGX570-TMH-WF 7C84-001R |
| Launch Date | August 2020 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel X570 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4533 / DDR4-4600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MAG X570 TOMAHAWK WIFI |
| SKU Code | MAG X570 TOMAHAWK WIFI |
| GTIN / EAN | 824142212912 |
Price History (last 12 months)
Plots available price points within the past 12 months.
