MSI MAG Z690 TOMAHAWK WIFI LGA1700 ATX DDR5 192 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

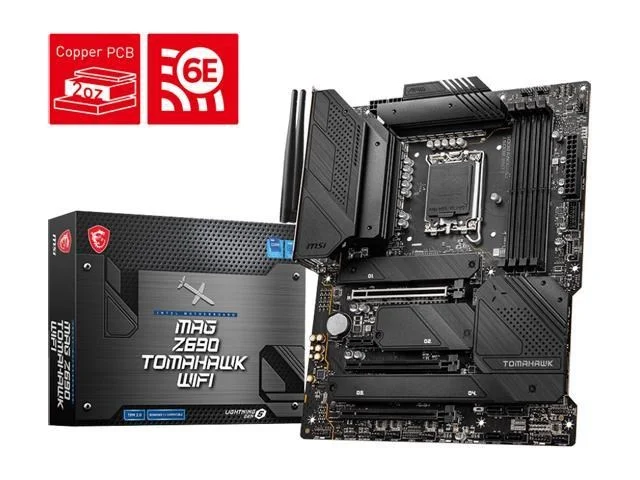

The MSI MAG Z690 TOMAHAWK WIFI is a ATX motherboard for LGA1700. It supports DDR5 memory up to 6400 MT/s (OC).
- MSI MAG Z690 TOMAHAWK WIFI LGA 1700 Intel Z690 SATA 6Gb/s ATX Intel Motherboard Memory Standard: DDR5 1R 4800 (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 6400+ 1DPC 2R Max speed up to 5400+ 2DPC 1R Max speed up to 4000+ 2DPC 2R Max speed up to 4000+ Number of Memory Slots: 4×288pin Audio Chipset: Realtek ALC4080 PCI Express 5.0 x16: 1 x PCI Express 5.0 x16 * Actual support may vary by CPU. PCI Express 3.0 x16: 2 x PCI Express 3.0 x16 * PCI_E3 Support up to PCIe 3.0 x4. * PCI_E4 Support up to PCIe 3.0 x1. Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: 10/100/1000/2500Mbps CPU Type: Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | MAG Z690 TOMAHAWK WIFI |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z690 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 5 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

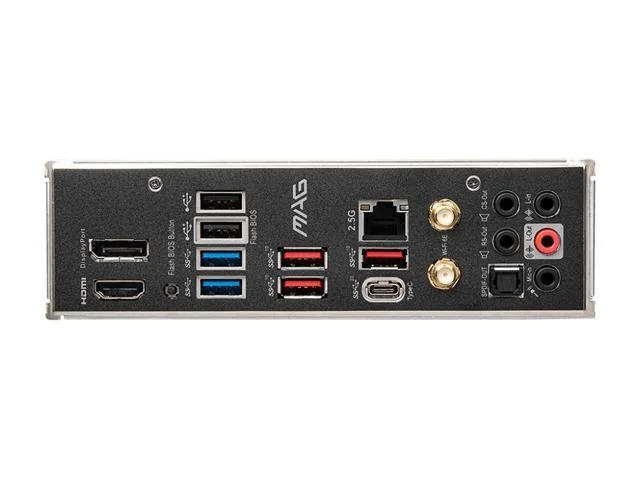

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MAG Z690 TOMAHAWK WIFI |
| SKU Code | MAG Z690 TOMAHAWK WIFI |
| GTIN / EAN | 824142272640 |
