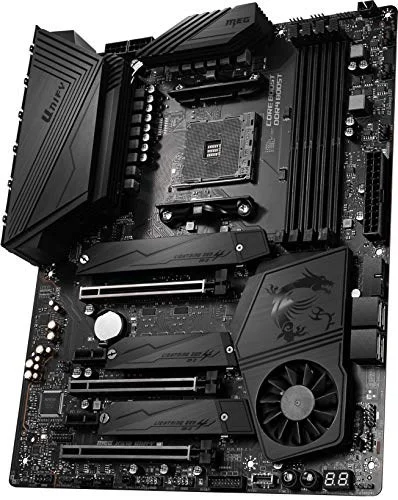

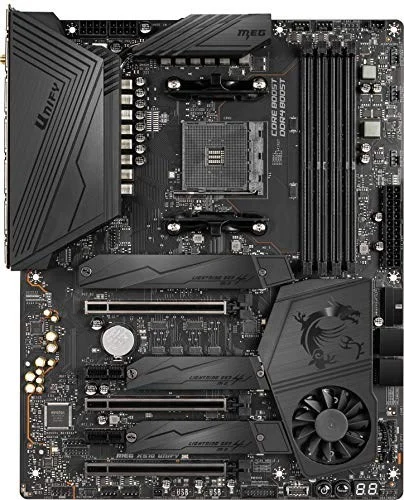

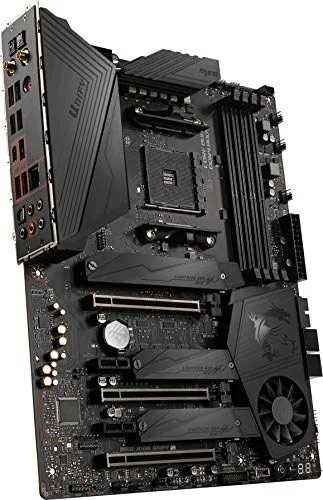

MSI Meg X570 Unify AM4 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI Meg X570 Unify is a ATX motherboard for AM4. It supports DDR4 memory up to 4600 MT/s (OC).
- Supports 2Nd And 3Rd Gen AMD Ryze/Ryzen With Radeon Vega Graphics And 2Nd Gen AMD Ryzen With Radeon Graphics Desktop Processors For AM4 Socket
- Supports DDR4 Memory, Up To 4600+(OC) Mhz
- Aluminum Cover With Extended Heatsink: All-Metal Extended Heatsink Cover Enlarge The Surface Of Heat Dissipation, Ensures Even High-End Processors To Run In Full Speed
- Lightning Fast Game Experience: Pcie 4.0, Triple Lightning Gen4 X4 M.2 With M.2 Shield Frozr, Storemi, AMD Turbo USB 3.2 Gen2
- 2.5G Gaming LAN With Latest Wi-Fi 6 Solution: Onboard 2.5G LAN With Gaming LAN Manager, Combining Latest Wi-Fi 6 Solution Which Supports MU-MIMO And Bss Color Technology, Delivering The Best Online Gaming Experience
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | MEG X570 UNIFY |
| Launch Date | October 2019 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel X570 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4533 / DDR4-4600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | 2.5GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

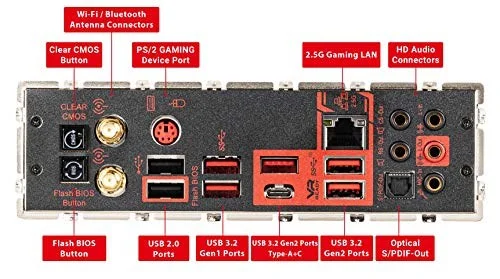

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MEG X570 UNIFY |
| SKU Code | MEG X570 UNIFY |
| GTIN / EAN | 824142199565 |
Price History (last 12 months)
Plots available price points within the past 12 months.
