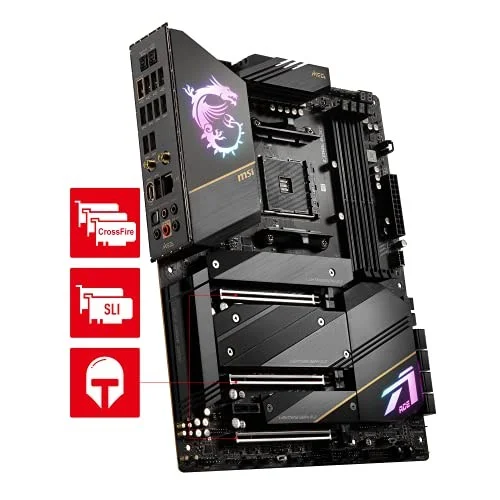

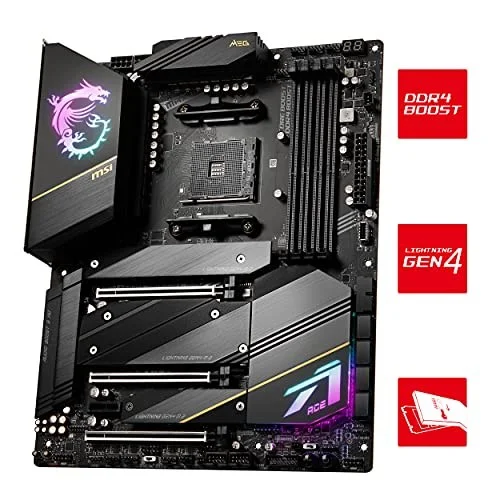

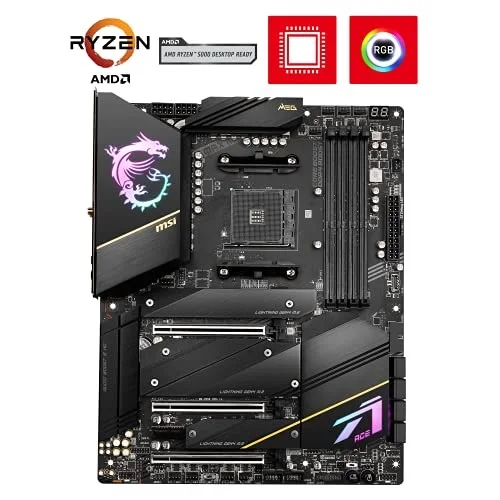

MSI MEG X570S ACE MAX AM4 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
$29.99 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI MEG X570S ACE MAX is a ATX motherboard for AM4. It supports DDR4 memory up to 5100 MT/s (OC).
- Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
- Supports DDR4 Memory, Dual Channel 5300(OC) MHz+
- Extreme Power Design: Direct 16+2+1 phases with 90A Smart Power Stage and dual CPU power connectors to unleash the maximum performance
- Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with Lightning Gen 4 solution

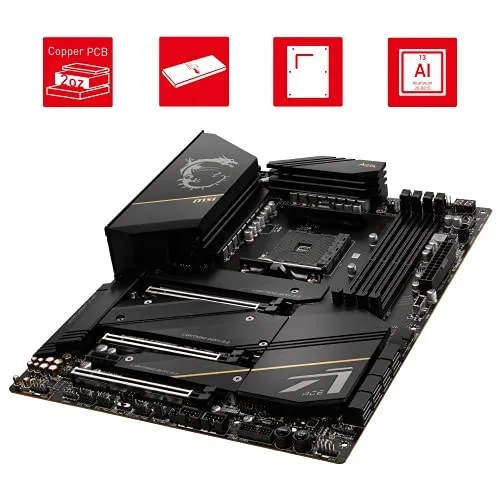

- Premium Thermal Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and MOSFET Baseplate
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | MEG X570S ACE MAX |
| Launch Date | September 2021 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel X570 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3600 / DDR4-4000 / DDR4-4266 / DDR4-4400 / DDR4-5100 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 5 × M.2 |
| M.2 Device Compatibility | 2280 / 22110 - M Key, 2260 / 2280 - M Key, 2280 / 22110 - M Key, 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MEG X570S ACE MAX |
| SKU Code | MEG X570S ACE MAX |
| GTIN / EAN | 824142266021 |
