MSI MEG X570S UNIFY-X MAX AM4 ATX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

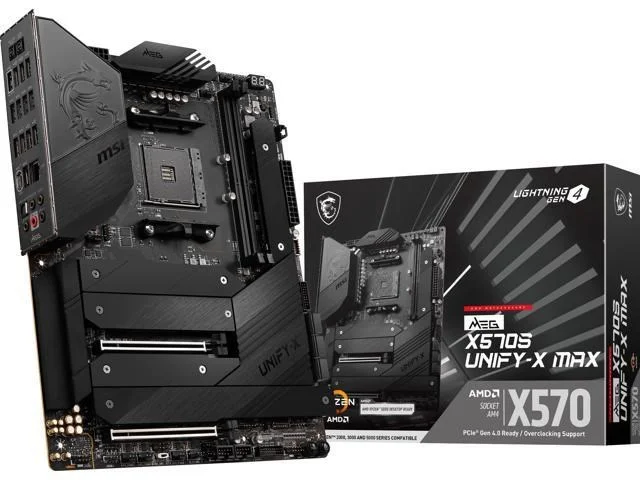

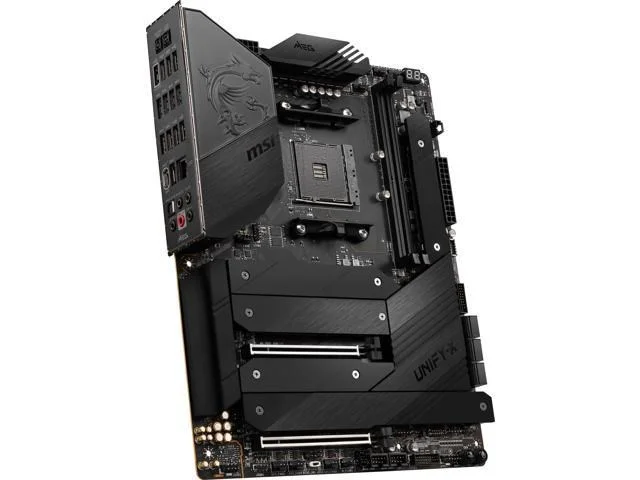

The MSI MEG X570S UNIFY-X MAX is a ATX motherboard for AM4. It supports DDR4 memory up to 5100 MT/s (OC).
- AMD X570 Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series and 2000 G-Series processors DDR4 3200 / 3066 / 3000 / 2933 / 2800 / 2667 / 2400 / 2133 / 1866 (by JEDEC) Max frequency by A-XMP OC mode: For Ryzen 5000 G-Series & 4000 G-Series processors: - 1DPC 1R Max speed up to 5300 (support overclocking up to 5800) - 1DPC 2R Max speed up to 4266 (support overclocking up to 4600) For Ryzen 5000 Series & 3000 Series processors: - 1DPC 1R Max sp
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | MEG X570S UNIFY-X MAX |
| Launch Date | |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel X570 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4533 / DDR4-4600 / DDR4-4733 / DDR4-4800 / DDR4-4866 / DDR4-5000 / DDR4-5100 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 6 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 - M Key, 2280 / 22110 - M Key, 2280 / 22110 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

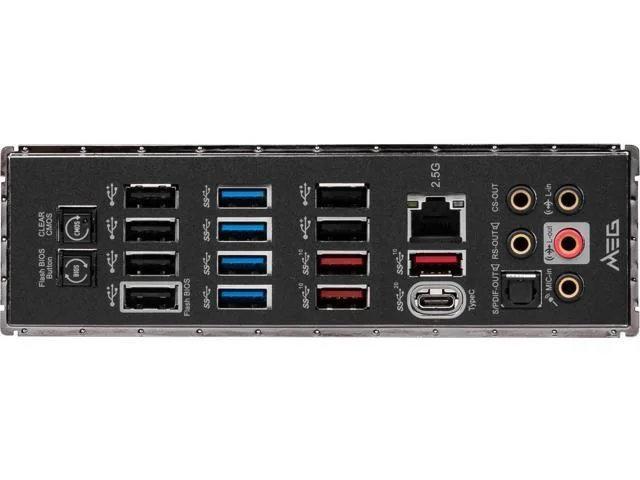

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MEG X570S UNIFY-X MAX |
| SKU Code | MEG X570S UNIFY-X MAX |
| GTIN / EAN | 824142270523 |
