MSI MEG Z490I UNIFY LGA1200 Mini-ITX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

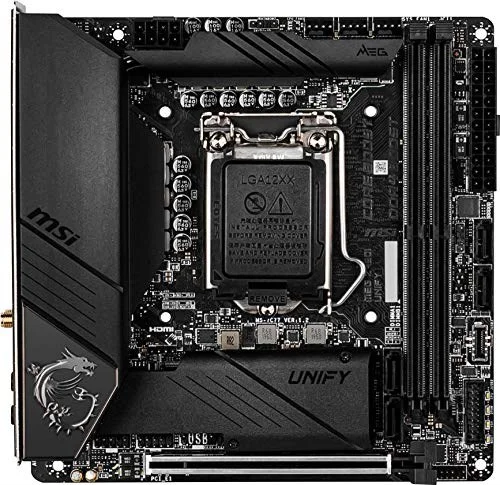

The MSI MEG Z490I UNIFY is a Mini-ITX motherboard for LGA1200. It supports DDR4 memory up to 5000 MT/s (OC).
- Supports 10Th Generation Intel Core / Pentium Gold / Celeron Processors For LGA 1200 Socket
- Supports Dual Channel DDR4 Memory
- Aluminum Cover With Extended Heatsink: All-Metal Extended Heatsink Cover Enlarge The Surface Of Heat Dissipation, Ensures Even High-End Processors To Run In Full Speed.
- 2.5G Gaming LAN With Latest Wi-Fi 6 Solution: Onboard 2.5G LAN With Gaming LAN Manager, Combining Latest Wi-Fi 6 Solution Which Supports MU-MIMO And BSS Color Technology, Delivering The Best Online Gaming Experience.
- Socket LGA1200
- Frozr Heatsink Design: Designed With The Patented Fan And Double Ball Bearings To Provide The Best Performance For Enthusiast Gamers And Prosumers.
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | MEG Z490I UNIFY 7C77-007R |
| Launch Date | May 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z490 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4533 / DDR4-4600 / DDR4-4800 / DDR4-5000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2280 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | 2.5GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

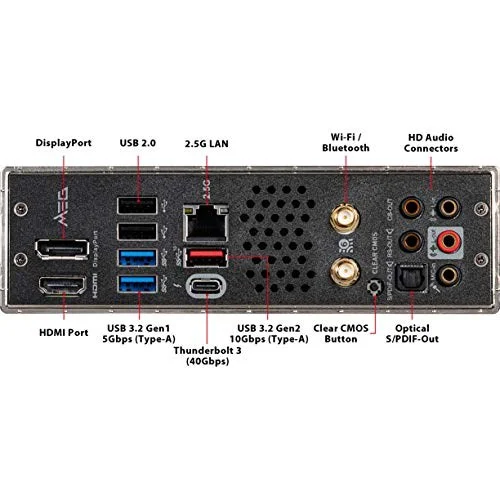

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MEG Z490I UNIFY |
| SKU Code | MEG Z490I UNIFY |
| GTIN / EAN | 824142214121 |
