MSI MEG Z690I UNIFY LGA1700 Mini-ITX DDR5 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

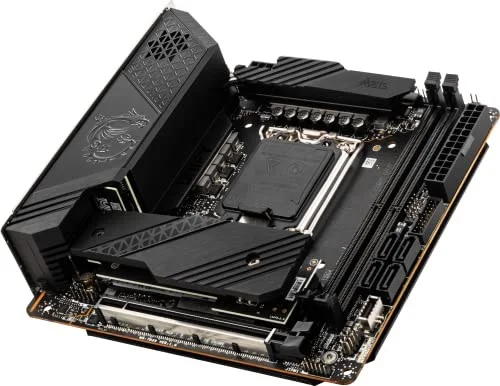

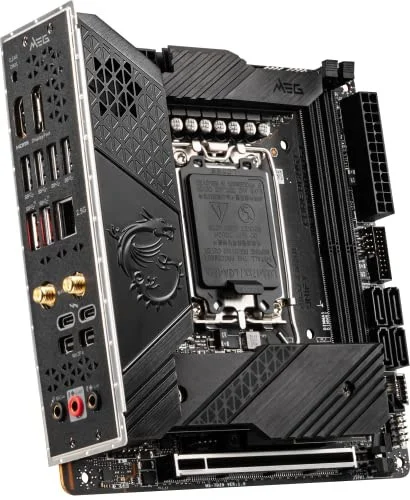

The MSI MEG Z690I UNIFY is a Mini-ITX motherboard for LGA1700. It supports DDR5 memory up to 6800 MT/s (OC).
- Supports 12th Gen Intel Core / Pentium Celeron processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5-6800+MHz(OC)
- Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
- Dedicated for Extreme OC: The top-notch R&D design and exclusive 2 DIMM solution for an even clearer DDR5 memory signal to explore the boundaries of memory overclocking, deliver the world class memory performance.
- Extreme Power Design: Premium digital PWM, direct 10+1+1 phases with 105A Smart Power Stage and Titanium Choke III to unleash the true power of your processors.
- Triple M.2 Connectors : Onboard triple M.2 connectors for the maximum storage performance with dual Lightning Gen 4 solution.
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | MEG Z690I UNIFY |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z690 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2280 - M Key, 2280 - M Key, 2230 - E key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

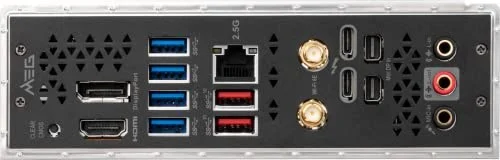

| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MEG Z690I UNIFY |
| SKU Code | MEG Z690I UNIFY |
| GTIN / EAN | 824142270325 |
