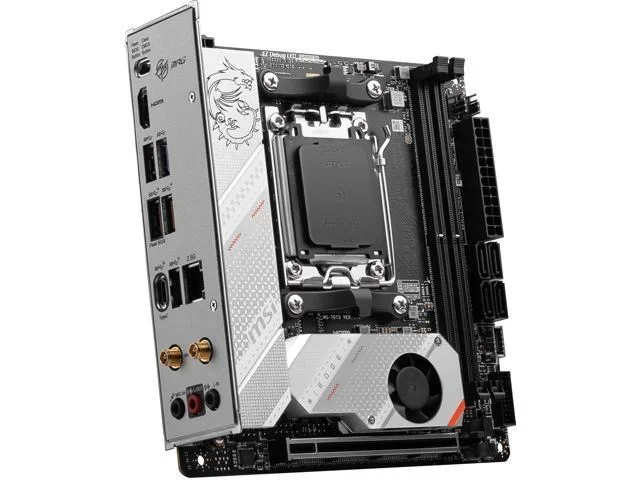

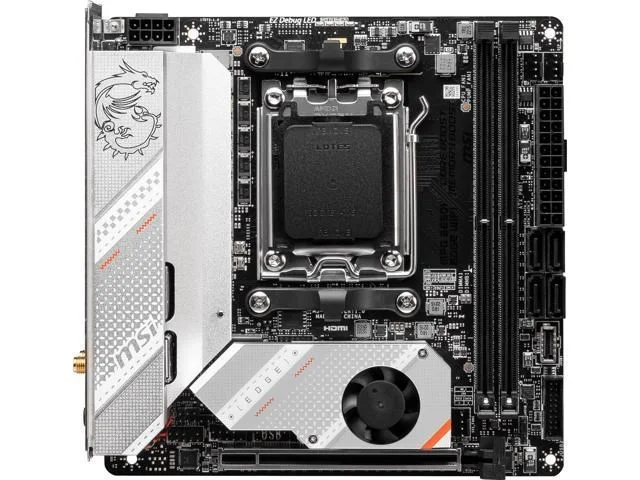

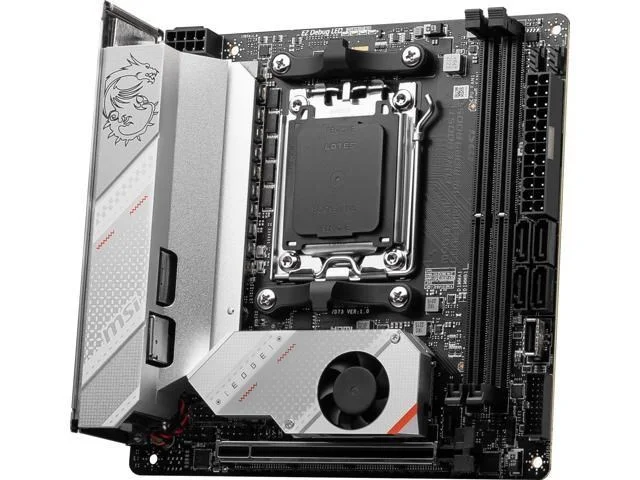

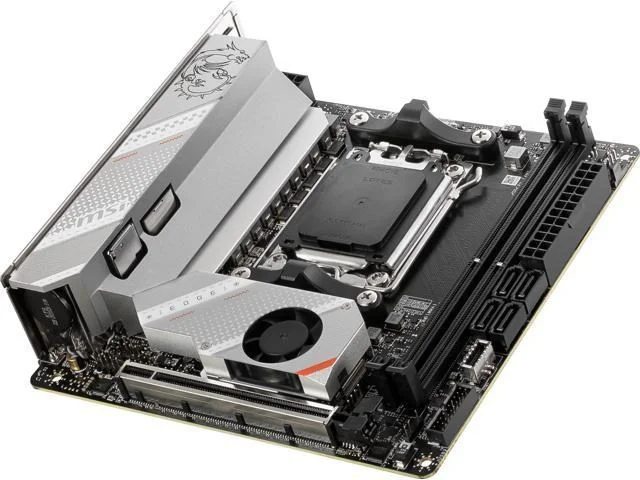

MSI MPG B650I EDGE WIFI AM5 Mini-ITX DDR5 128 GB Motherboard
Seller | Shipping | Promo | Price |
---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
£42.52 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI MPG B650I EDGE WIFI is a Mini-ITX motherboard for AM5. It supports DDR5 memory up to 6600 MT/s (OC).

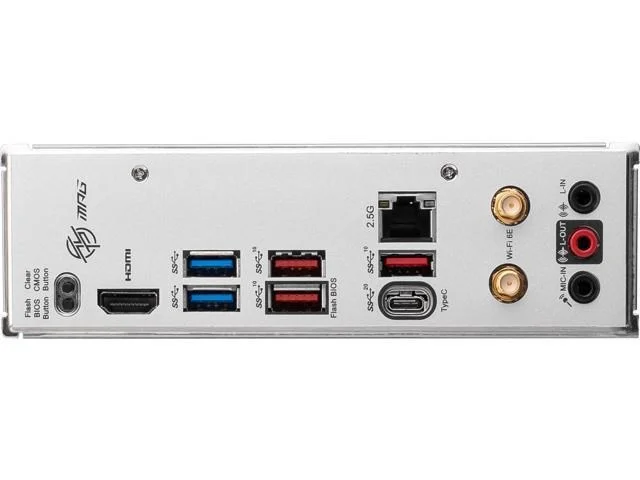

- AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors ChipsetAMD B650Memory2 x DIMM, Max. 64GB, DDR5 5200MHz upto 6600MHz (OC) Supports AMD EXTended Profiles for Overclocking (EXPO)Onboard Graphics Outputs1 x HDMI portPCI Slots1x PCI-E x16 slot - PCI_E1 PCIe 4.0 supports up to x16 (From CPU) StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s portsM.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesNetworking1 x 2.5Gb Ethernet WIFI 6EBluetoothAudioRealtek ALC4080 CodecConnectivityClear CMOS Button2x USB 3.2 Gen 1 5Gbps (Type-A)2.5G LANWireless / BluetoothAudio ConnectorsFlash BIOS ButtonHDMI2x USB 3.2 Gen 2 10Gbps (Type-A)USB 3.2 Gen 2 10Gbps (Type-A)USB 3.2 Gen 2x2 20Gbps (Type-C)Internal Ports1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan1x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Addressable V2 RGB LED connector (JARGB_V2)2x USB 2.02x USB 3.2 Gen1 Type A1x USB 3.2 Gen2 Type CForm FactorMini-ITX - 170mmx170mm
Specifications
Manufacturer | MSI |
---|---|
Model Number | MPG B650I EDGE WIFI |
Launch Date | |
CPU Socket | AM5 |
Chipset Model | Intel B650 |
Board Size / Form Factor | Mini-ITX |
Supported Memory Type | DDR5 |
DIMM Slots | 2 |
Maximum RAM Capacity | 128 GB |
Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 (OC) |
ECC Memory Support | No |
Expansion Slots (PCIe) | 1 × PCIe x16 |
PCIe x16 (Qty) | 1 |
PCIe x4 (Qty) | 0 |
PCIe x1 (Qty) | 0 |
M.2 Slot Count | 2 × M.2 |
M.2 Device Compatibility | 2260 / 2280 - M Key, 2260 / 2280 - M Key |
SATA III Ports | 4 × SATA 6Gbps |
SATA Express Ports | 0 |
Wired Networking (LAN) | 2.5GbE LAN |
Onboard Wi-Fi | Yes |
Wi-Fi Standard | 6E (802.11ax, 6 GHz) |
Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1 |
Internal USB 3.2 Gen 2x2 Headers | 0 |
Internal USB 3.2 Gen 2 Headers | 1 |
Internal USB 3.2 Gen 1 Headers | 1 |
Internal USB 2.0 Headers | 0 |
NVIDIA SLI | No |
AMD CrossFire | No |
RAID Capability | Yes |
Back-Connect Layout | No |
Manufacturer Part Number (MPN) | MPG B650I EDGE WIFI |
SKU Code | MPG B650I EDGE WIFI |
GTIN / EAN | 824142301029 |
