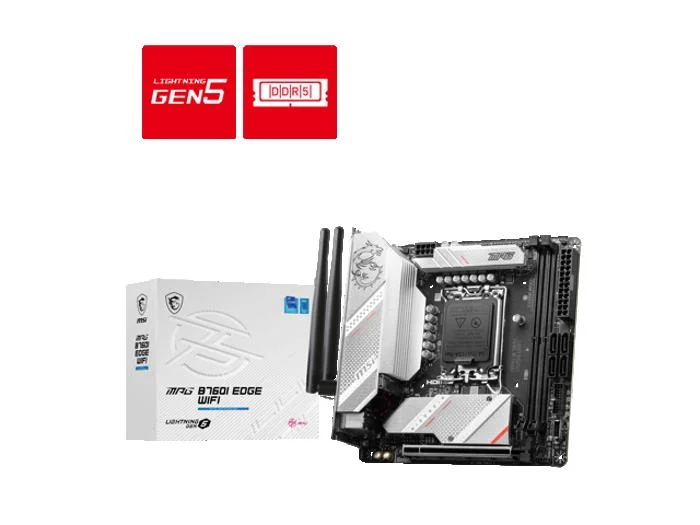

MSI MPG B760I EDGE WIFI LGA1700 Mini-ITX DDR5 96 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI MPG B760I EDGE WIFI is a Mini-ITX motherboard for LGA1700. It supports DDR5 memory up to 7200 MT/s (OC).
- MSI MPG B760I EDGE WIFI LGA 1700 Intel B760 SATA 6Gb/s Mini ITX Motherboard Number of Memory Slots: 2x288pin (DDR5) PCI Express x16: 1 x PCI Express x16 Audio Chipset: Realtek ALC897 CPU Type: Supports 12th / 13th Gen Intel Core Processors, Pentium Gold and Celeron Processors Maximum Memory Supported: 64GB Channel Supported: Dual Channel M.2: 1 x Key M (CPU PCIe) 1 x Key M (PCIe/SATA) 1 x Key E (WiFi/BT) Audio Channels: 8 Channels
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | MPG B760I EDGE WIFI |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel B760 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 96 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MPG B760I EDGE WIFI |
| SKU Code | MPG B760I EDGE WIFI |
| GTIN / EAN | 824142315545 |
