Description
The MSI MPG B850I Edge TI WiFi is a Mini-ITX motherboard for AM5. It supports DDR5 memory up to 8200 MT/s (OC).
- ULTRA POWER - SUPPORTS THE LATEST RYZEN 9000 PROCESSORS IN HIGH PERFORMANCE - The MPG B850I EDGE TI WIFI employs a Direct 8 phases power (90A, SPS) VRM for the AMD B850 chipset (AM5, Ryzen 9000 / 8000 / 7000) with Core Boost architecture
- FROZR GUARD - Premium cooling features such as 7W/mK MOSFET thermal pads, extra choke thermal pads and an Extended Heatsink; M.2 Shield Frozr, a Combo-fan (for pump & system) header (3A)
- DDR5 MEMORY, PCIe 5.0 x16 SLOTS - 2 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 8200+ MT/s); PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor II supports cutting-edge graphics cards
- DUAL M.2 CONNECTORS - Includes 1 x M.2 Gen5 x4 128Gbps slot and 1 x M.2 Gen4 x4 64Gbps slot
- CONNECTIVITY - Network hardware includes a full-speed Wi-Fi 7 module with Bluetooth 5.4 & 5Gbps LAN; Rear ports include USB Type-C 20Gbps and 7.1 USB High Performance Audio with Audio Boost 5 (supports S/PDIF output)
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | MPG B850I EDGE TI WIFI 7E79-001R |
| Launch Date | July 2025 |
| CPU Socket | AM5 |
| Chipset Model | Intel B850 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5600 / DDR5-8000 / DDR5-8200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2280 - M Key |
| SATA III Ports | 0 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 7 (802.11be) |

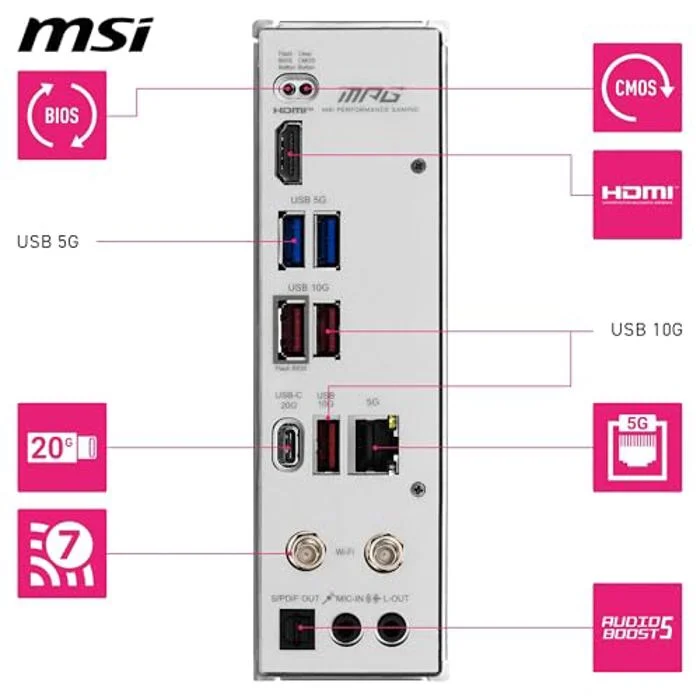

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 0 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MPG B850I EDGE TI WIFI |
| SKU Code | MPG B850I EDGE TI WIFI |
| GTIN / EAN | 824142431061 |
