MSI MPG X570S EDGE MAX WIFI AM4 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
£45.19 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

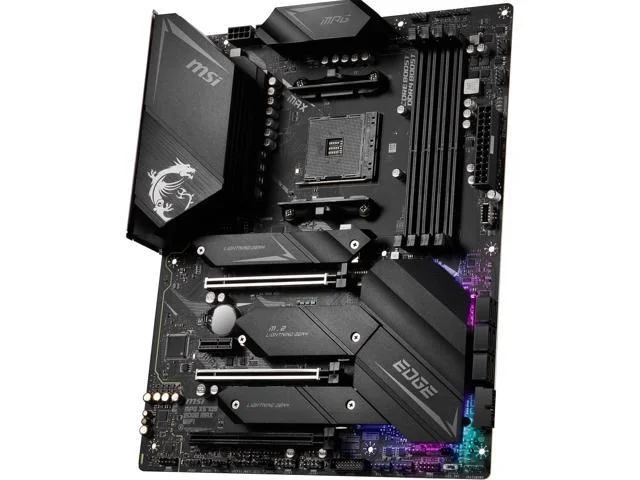

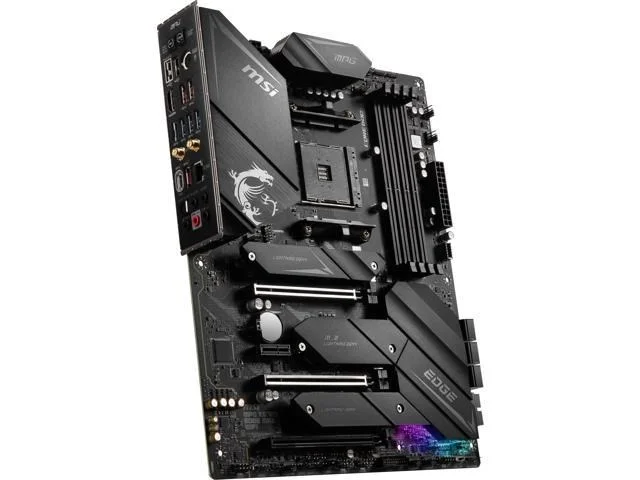

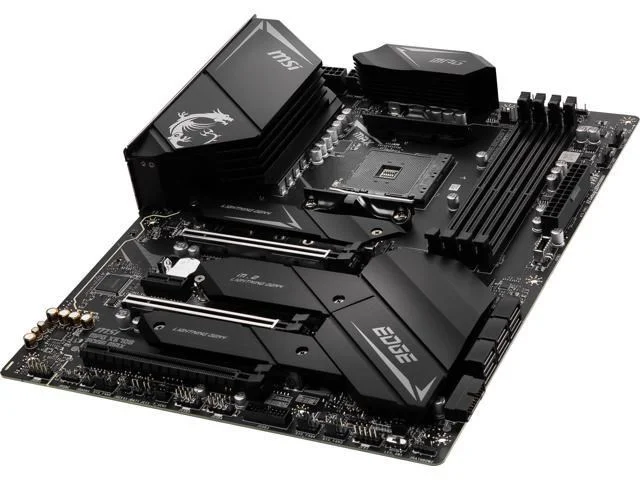

The MSI MPG X570S EDGE MAX WIFI is a ATX motherboard for AM4. It supports DDR4 memory up to 5200 MT/s (OC).
- MSI MPG X570S EDGE MAX WIFI AM4 AMD X570 SATA 6Gb/s ATX AMD Motherboard Number of Memory Slots: 4×288pin Memory Standard: DDR4 3200 / 3066 / 3000 / 2933 / 2800 / 2667 / 2400 / 2133 / 1866 (by JEDEC) Max frequency by A-XMP OC mode: For Ryzen 5000 G-Series & 4000 G-Series processors: - 1DPC 1R Max speed up to 5300 - 1DPC 2R Max speed up to 4266 - 2DPC 1R Max speed up to 4400 - 2DPC 2R Max speed up to 3600 For Ryzen 5000 Series & 3000 Series processors: - 1DPC 1R Max speed up to 5100 - 1DPC 2R Max speed up to 4000 - 2DPC 1R Max speed up to 4000 - 2DPC 2R Max speed up to 3600 PCI Express 3.0 x16: 1 x PCI Express 3.0 x16* * PCI_E4 supports 3.0 x1 only. Onboard Video Chipset: Supported only by CPU with integrated graphic Audio Chipset: Realtek ALC4080 PCI Express x1: 1 x PCI Express 3.0 x1 Audio Channels: 7.1 Channels Max LAN Speed: 10/100/1000/2500Mbps
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | MPG X570S EDGE MAX WIFI |
| Launch Date | |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel X570 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4533 / DDR4-4600 / DDR4-4800 / DDR4-5000 / DDR4-5200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

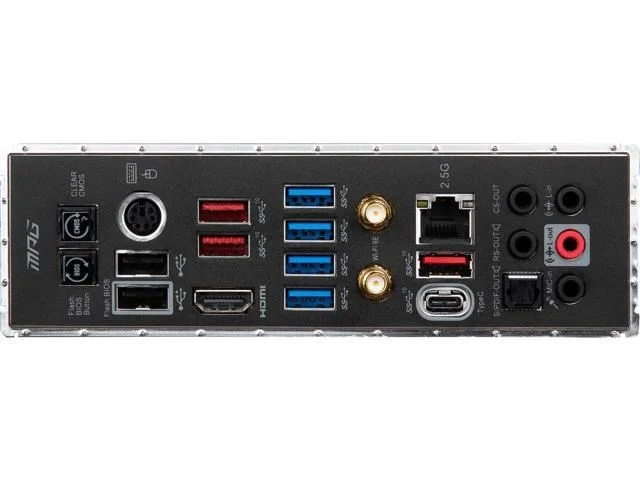

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MPG X570S EDGE MAX WIFI |
| SKU Code | MPG X570S EDGE MAX WIFI |
| GTIN / EAN | 824142265925 |
