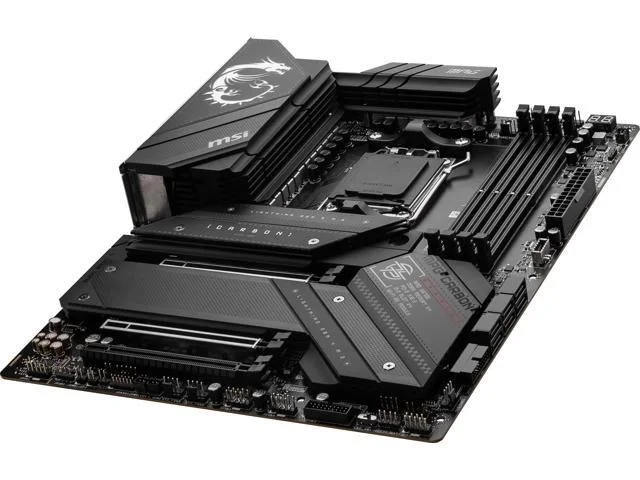

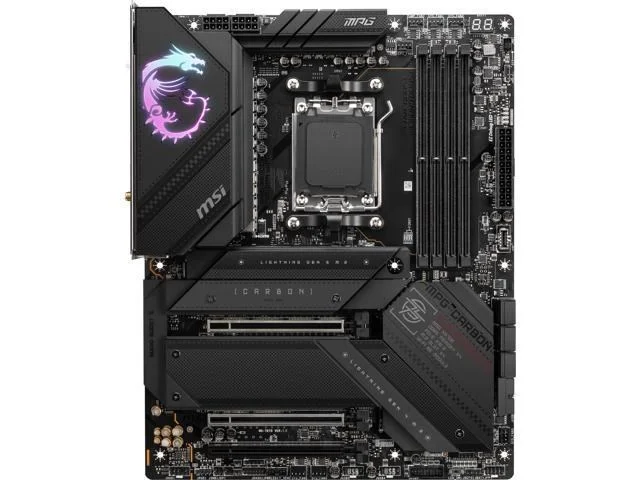

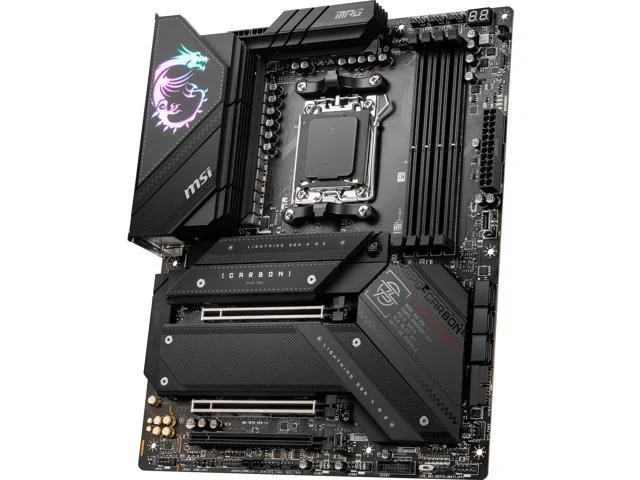

MSI MPG X670E CARBON WIFI AM5 ATX DDR5 192 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI MPG X670E CARBON WIFI is a ATX motherboard for AM5. It supports DDR5 memory up to 6600 MT/s (OC).
- POWERFUL VRM, Ryzen 7000 READY - The MPG X670E CARBON WIFI employs an 18+2 phase Duet Rail VRM with 90A Power Stage for the AMD X670 chipset (AM5, Ryzen 7000 ready); Core Boost architecture supports multi-core overclocking
- PREMIUM COOLING - VRM cooling features 7W/mK MOSFET thermal pads with extra choke pads and a bilateral heat-pipe to 2 heavy-plated MOS heatsinks; Includes an enlarged chipset heatsink, double-sided M.2 Shield Frozr & an 8-layer server-grade PCB
- DDR5 MEMORY, DUAL PCI-E 5.0 x16 SLOTS - 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 6600+ MHz); 2 x PCIe 5.0 x16 SMT slots (128GB/s) support cutting-edge graphics cards (teriary PCIe 4.0 x16 slot, AMD Multi-GPU supported)
- QUADRUPLE M.2 CONNECTORS - Premium storage options consist of 2 x M.2 Gen5 x4 128Gbps slots and 2 x M.2 Gen4 x4 64Gbps slots with Shield Frozr to prevent SSD thermal throttling; Features a tool-free installation system with EZ M.2 Clips

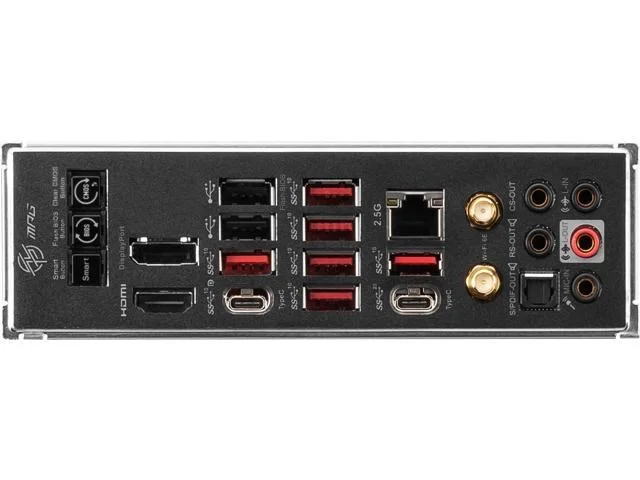

- WI-FI 6E CONNECTIVITY - Network hardware includes Wi-Fi 6E with Bluetooth 5.2 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2x2 Type-C (20Gbps), HDMI 2.1 & DisplayPort 1.4, and 7.1 HD Audio with Audio Boost 5 (supports S/PDIF output)
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | MPG X670E CARBON WIFI |
| Launch Date | |
| CPU Socket | AM5 |
| Chipset Model | Intel X670E |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 5 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 / 22110 - M Key, 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MPG X670E CARBON WIFI |
| SKU Code | MPG X670E CARBON WIFI |
| GTIN / EAN | 4711377004879 |
