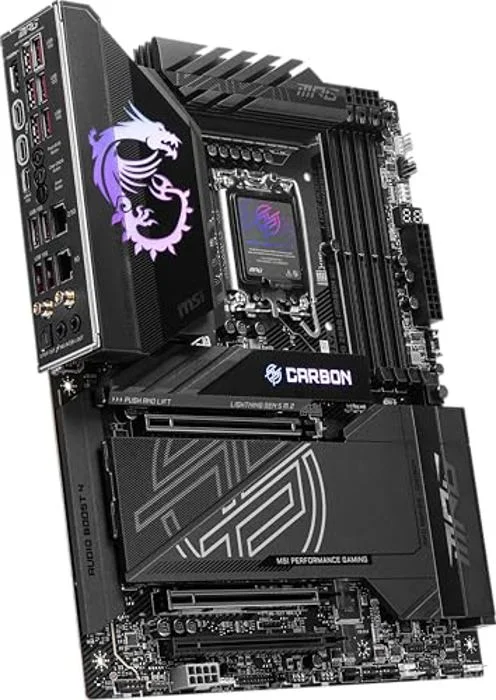

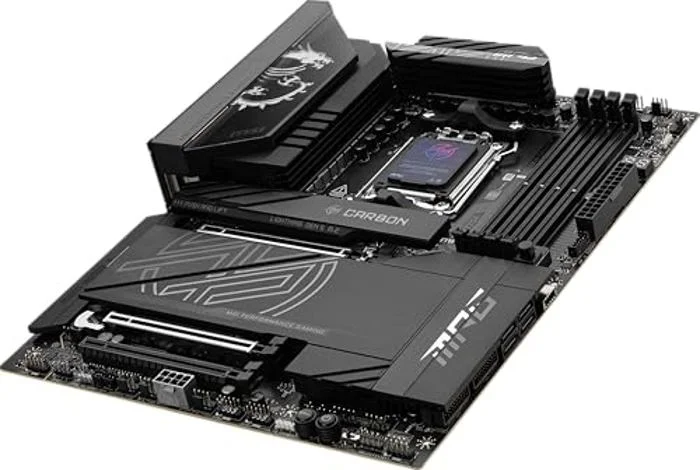

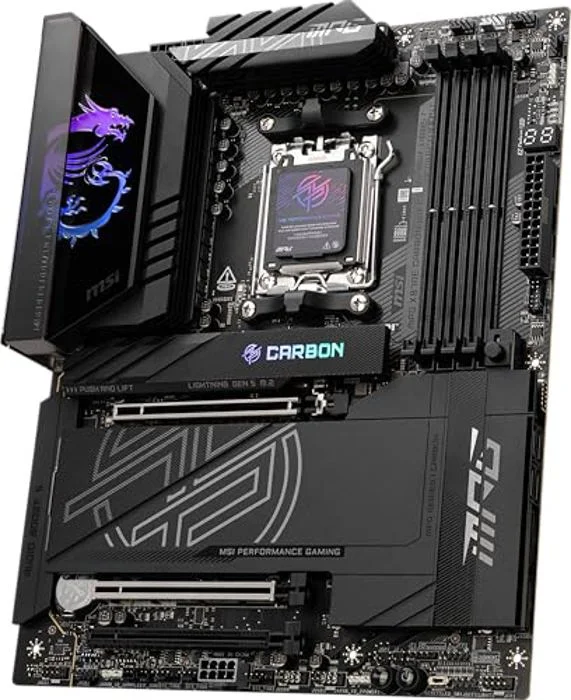

MSI MPG X870E Carbon WiFi AM5 ATX DDR5 256 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI MPG X870E Carbon WiFi is a ATX motherboard for AM5. It supports DDR5 memory up to 8400 MT/s (OC).
- Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors
- Premium Thermal Design: Heavy plated MOSFET heatsink with heat-pipe / high quality 7W/mK MOSFET thermal pads / extra choke thermal pads / onboard M.2 Shield Frozr
- EZ PCIe Release: A simple press of a button to effortlessly lock or unlock the PCIe slot
- Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed
- Dual LAN: Dual premium network solution for both Intranet and Internet
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | MPG X870E CARBON WIFI 7E49-001R |
| Launch Date | September 2024 |
| CPU Socket | AM5 |
| Chipset Model | Intel X870E |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 / DDR5-8000 / DDR5-8200 / DDR5-8400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2280 / 22110 - M Key, 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 7 (802.11be) |

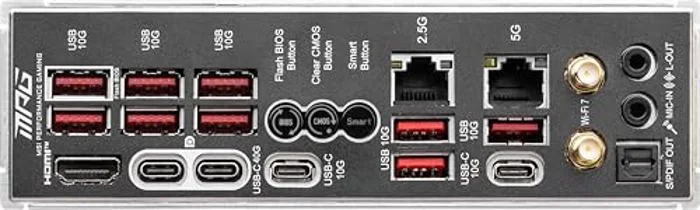

| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MPG X870E CARBON WIFI |
| SKU Code | MPG X870E CARBON WIFI |
| GTIN / EAN | 824142382219 |
