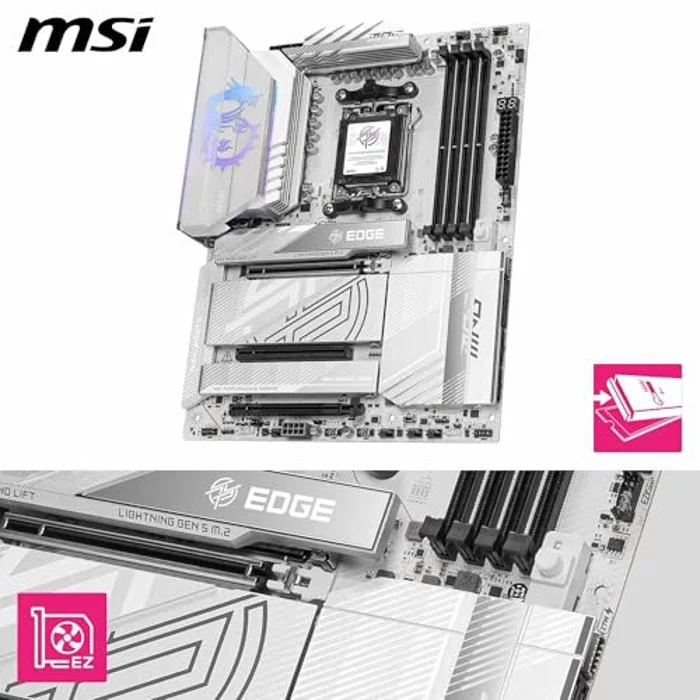

MSI MPG X870E Edge TI WiFi AM5 ATX DDR5 256 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI MPG X870E Edge TI WiFi is a ATX motherboard for AM5. It supports DDR5 memory up to 8400 MT/s (OC).
- ULTRA POWER - SUPPORTS THE LATEST RYZEN 9000 PROCESSORS IN HIGH PERFORMANCE - The MPG X870E EDGE TI WIFI employs an 14 Duet Rail Power System (80A, SPS) VRM for the AMD X870E chipset (AM5, Ryzen 9000 / 8000 / 7000) with Core Boost architecture

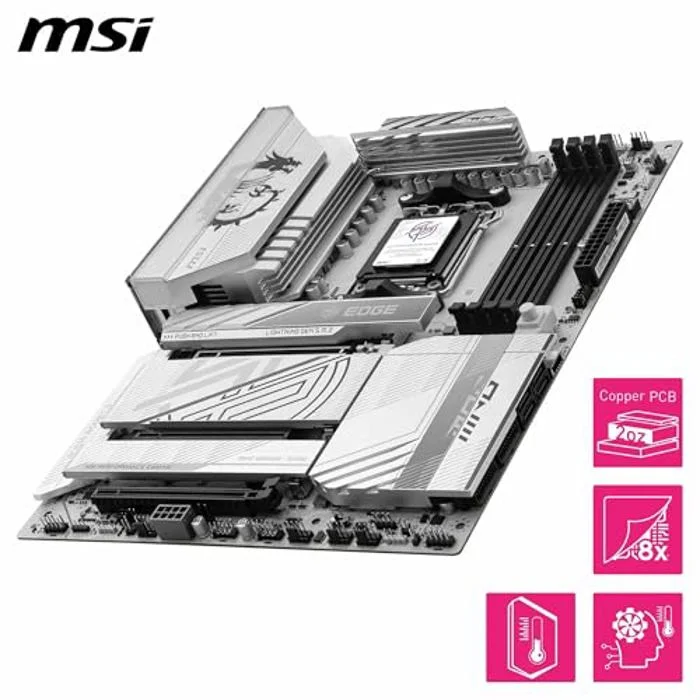

- FROZR GUARD - Premium cooling features such as 7W/mK MOSFET thermal pads, extra choke thermal pads and an Extended Heatsink with Heat-pipe; Includes chipset heatsink, double-sided EZ M.2 Shield Frozr II, a Combo-fan (for pump & system) header (3A)
- DDR5 MEMORY, PCIe 5.0 x16 SLOTS - 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 8400+ MT/s); PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor II support cutting-edge graphics cards

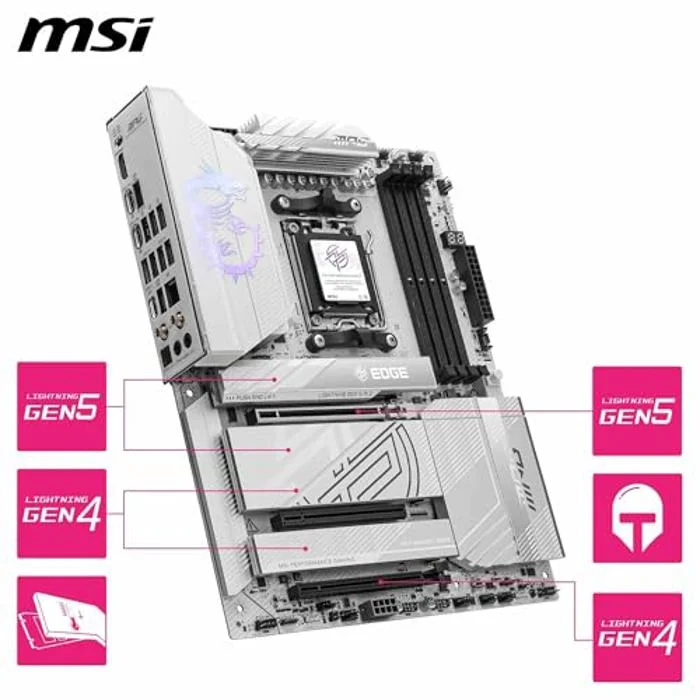

- QUADRUPLE M.2 CONNECTORS - Storage options include 2 x M.2 Gen5 x4 128Gbps slots and 2 x M.2 Gen4 x4 64Gbps slots with Shield Frozr to prevent thermal throttling; Features EZ M.2 Shield Frozr II with EZ M.2 Clip II for EZ DIY experience

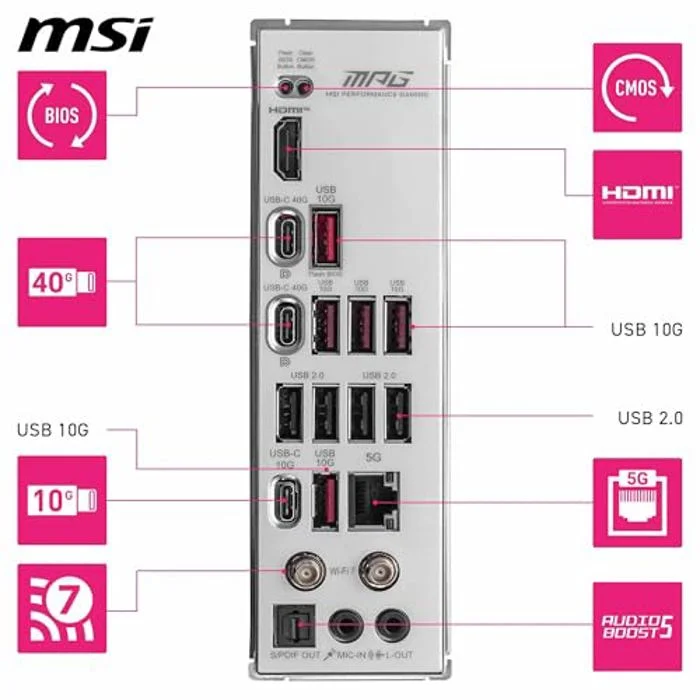

- ULTRA CONNECT - Network hardware includes a full-speed Wi-Fi 7 module with Bluetooth 5.4 & 5Gbps LAN; Rear ports include USB4 Type-C 40Gbps with display output and 7.1 USB High Performance Audio with Audio Boost 5 (supports S/PDIF output)
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | MPG X870E EDGE TI WIFI 7E59-002R |
| Launch Date | January 2025 |
| CPU Socket | AM5 |
| Chipset Model | Intel X870E |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-8400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 5 × M.2 |
| M.2 Device Compatibility | 2280 / 22110 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 0 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 7 (802.11be) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MPG X870E EDGE TI WIFI |
| SKU Code | MPG X870E EDGE TI WIFI |
| GTIN / EAN | 824142395363 |
