MSI MPG Z490 Gaming Carbon WiFi LGA1200 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

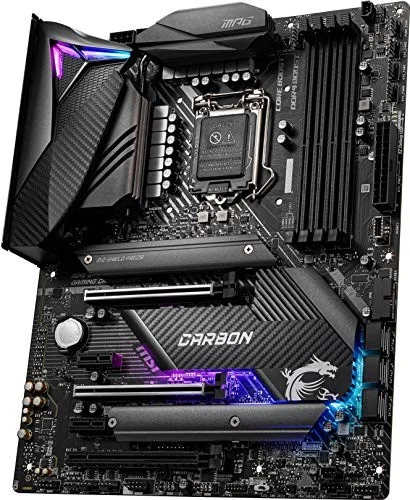

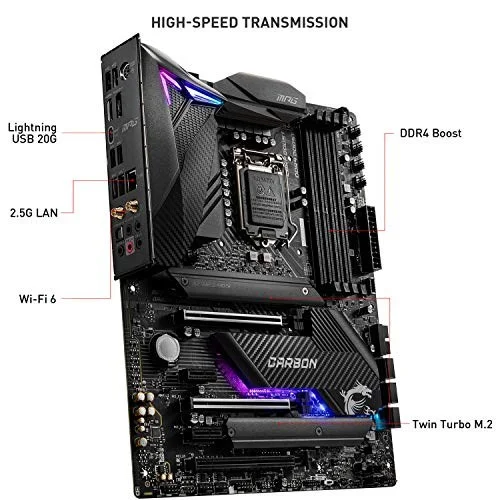

The MSI MPG Z490 Gaming Carbon WiFi is a ATX motherboard for LGA1200. It supports DDR4 memory up to 4800 MT/s (OC).
- Supports 10Th Generation Intel Core / Pentium Gold / Celeron Processors For LGA 1200 Socket
- Supports Dual Channel DDR4 Memory Up To 128GB (4800Mhz)
- Lightning USB 20G Is Powered By The Asmedia 3241 USB 3.2 Gen 2X2 Controller, Offering Never Before Seen USB Speeds Up To 20Gb/S From The Rear USB Type-C Port

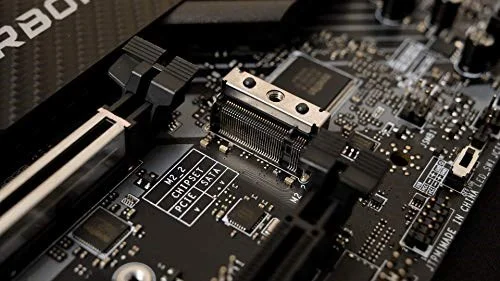

- Twin Turbo M.2 With M.2 Shield Frozr Delivers Transfer Speeds Of Up To 32 GB/S For Ultra-Fast Ssds
- On-Board 2.5G LAN Plus Gigabit LAN With With Wi-Fi 6 (802.11Ax)
- Pre-Installed I/O Shielding For Convenience And Protection From Electrostatic Discharge
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | MPG Z490 Gaming Carbon WiFi Z490-G-CRBN-WF 7C73-001R |
| Launch Date | May 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z490 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4533 / DDR4-4600 / DDR4-4800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | 2.5GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

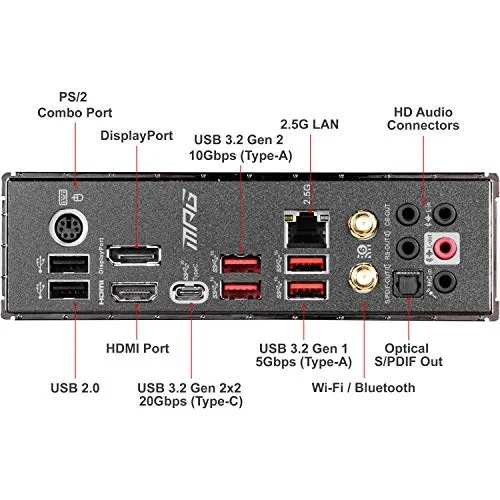

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MPG Z490 Gaming Carbon WiFi |
| SKU Code | MPG Z490 Gaming Carbon WiFi |
| GTIN / EAN | 824142212462 |
