MSI MPG Z790I EDGE WIFI LGA1700 Mini-ITX DDR5 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

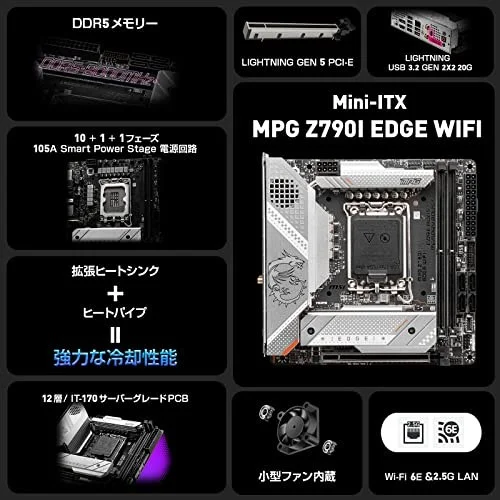

The MSI MPG Z790I EDGE WIFI is a Mini-ITX motherboard for LGA1700. It supports DDR5 memory up to 7800 MT/s (OC).
- MSI MPG Z790I EDGE WIFI LGA 1700 Intel Z790 SATA 6Gb/s DDR5 Mini ITX Motherboard Memory Standard: Supports 1R 5600 MHz (by JEDEC & POR) Max. overclocking frequency: - 1DPC 1R Max speed up to 8000+ MHz - 1DPC 2R Max speed up to 6600+ MHz Supports Intel- XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory Number of Memory Slots: 2x288pin (DDR5) Audio Chipset: Realtek ALC4080 PCI Express 5.0 x16: 1x PCIe 5.0 x16 slot (From CPU) Max LAN Speed: 2.5Gbps CPU Type: Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors Maximum Memory Supported: 64GB Channel Supported: Dual Channel
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | MPG Z790I EDGE WIFI |
| Launch Date | October 2022 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z790 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2280 - M Key, 2280 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 0 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MPG Z790I EDGE WIFI |
| SKU Code | MPG Z790I EDGE WIFI |
| GTIN / EAN | 824142301456 |
