MSI MPG Z890 EDGE TI WIFI LGA1851 ATX DDR5 256 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI MPG Z890 EDGE TI WIFI is a ATX motherboard for LGA1851. It supports DDR5 memory up to 9200 MT/s (OC).
- MSI MPG Z890 EDGE TI WIFI7 GAMING MOTHERBOARD Brand: MSI CPU Socket Type: LGA 1851 Chipset: Intel Z890 Form Factor: ATX Maximum Memory Supported: 256GB Channel Supported: Dual Channel PCI Express x4: PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI Express x1: PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) * PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | MPG Z890 EDGE TI WIFI 7E19-001R |
| Launch Date | October 2024 |
| CPU Socket | LGA1851 |
| Chipset Model | Intel Z890 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 / DDR5-7900 / DDR5-7950 / DDR5-8000 / DDR5-8200 / DDR5-8266 / DDR5-8400 / DDR5-8600 / DDR5-9200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 5 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 7 (802.11be) |

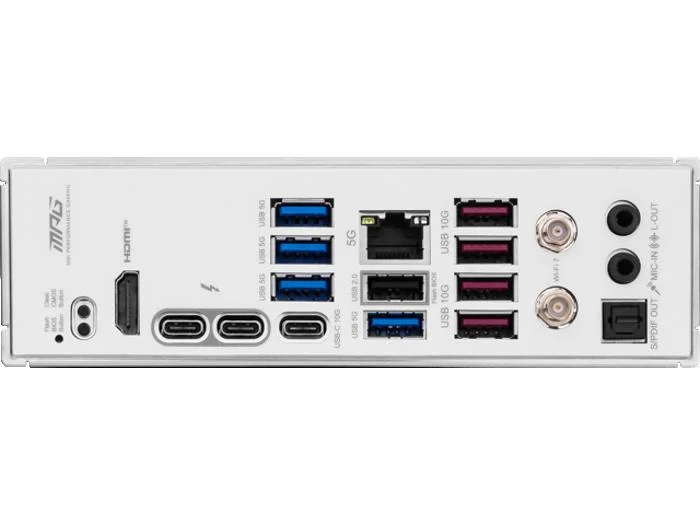

| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MPG Z890 EDGE TI WIFI |
| SKU Code | MPG Z890 EDGE TI WIFI |
| GTIN / EAN | 824142383773 |
