MSI PRO B550-VC AM4 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
£45.71 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI PRO B550-VC is a ATX motherboard for AM4. It supports DDR4 memory up to 4400 MT/s (OC).
- MSI PRO PRO B550-VC AM4 AMD B550 SATA 6Gb/s ATX AMD Motherboard Number of Memory Slots: 4x288pin (DDR4) Memory Standard: DDR4 4400+ / 4266 / 4133 /4000 / 3866 / 3733 / 3600 / 3466 / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 by A-XMP OC MODE DDR4 3200 / 3066 / 3000 / 2933 / 2800 / 2667 / 2400 / 2133 / 1866 by JEDEC 1DPC 1R Max speed 4800 1DPC 2R max speed 3866 2DPC 1R max speed 4000 2DPC 2R max speed 3600 PCI Express 3.0 x16: 3 x PCI Express 3.0 x16* * PCI_E2 & PCI_E4 support x1 mode. * PCI_E3 supports x4 mode. * When installing PCIe SSD in M.2_2, PCI_E3 slot will be unavailable. Onboard Video Chipset: Supported only by CPU with integrated graphic Audio Chipset: Realtek ALC892/ALC897 Audio Channels: 7.1 Channels Max LAN Speed: 10/100/1000Mbps Maximum Memory Supported: 128GB
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | PRO B550-VC |
| Launch Date | |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B550 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 4 × PCIe x16 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

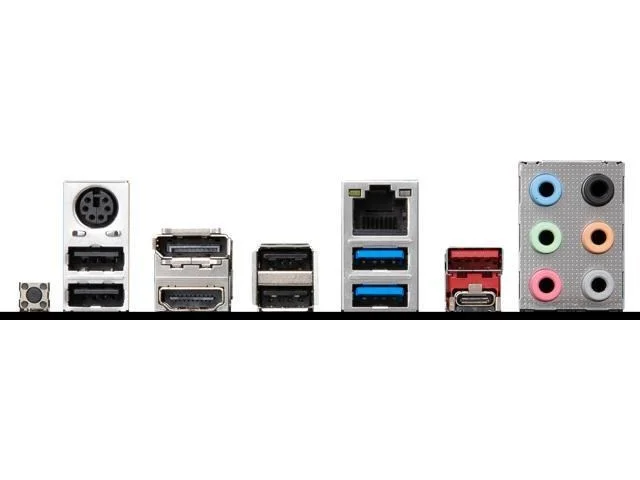

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRO B550-VC |
| SKU Code | PRO B550-VC |
| GTIN / EAN | 824142299241 |
