Description

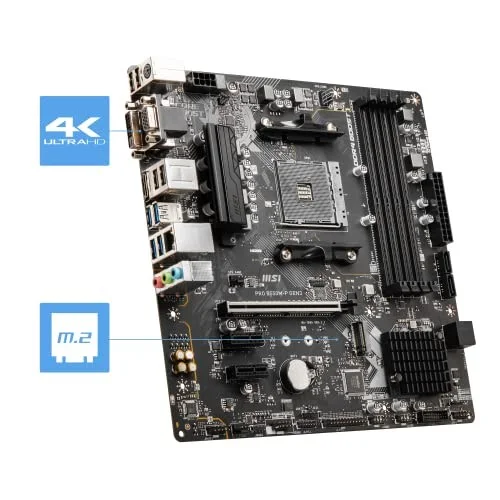

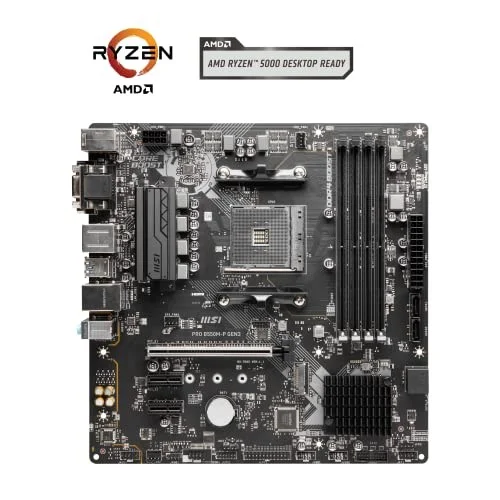

The MSI PRO B550M-P GEN3 is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 4266 MT/s (OC).

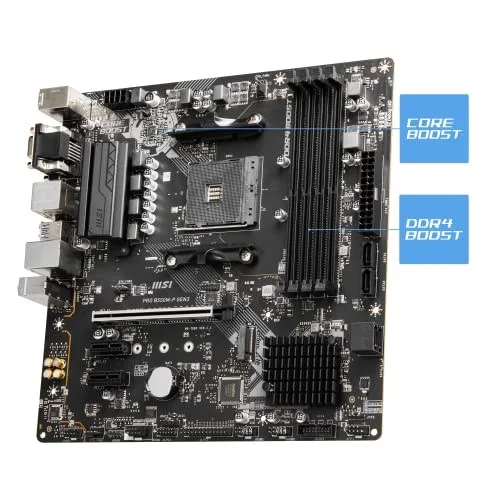

- RYZEN 5000 READY, RELIABLE PERFORMANCE - The PRO B550M-P GEN3 is a compact micro-ATX (mATX) motherboard outfitted with the latest AMD B550 chipset (AM4, Ryzen 5000 ready); The VRM features MSI Core Boost technology for improved stability & performance
- COOLING FEATURES - The VRM & chipset heatsinks provide passive cooling; System cooling settings can be adjusted both in BIOS or through MSI Center software
- DDR4 MEMORY, PCIe 3.0 x16 SLOT - 4 x DDR4 DIMM slots feature DDR4 Boost isolated circuitry for overclocking (1DPC 1R, 4400+ MHz); A PCIe 3.0 x16 Steel Armor slot supports heavy model graphics cards
- GEN3 M.2 CONNECTOR - Storage includes a M.2 Gen3 x4 32Gb/s slot (supports SATA 6Gb & 2242, 2260, 2280 storage devices)

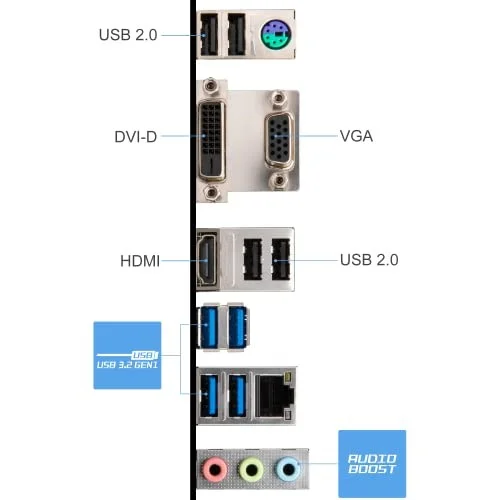

- WELL CONNECTED - Network hardware includes a Gigabit LAN controller; Rear ports include 2 x USB 3.2 Gen 1 Type-A (5Gb/s), 7.1 HD Audio with Audio Boost, HDMI 1.4 (4K/30Hz), DVI-D, and legacy VGA
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | PRO B550M-P GEN3 7D95-001R |
| Launch Date | January 2022 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B550 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4133 / DDR4-4266 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRO B550M-P GEN3 |
| SKU Code | PRO B550M-P GEN3 |
| GTIN / EAN | 4719072962234 |
