MSI PRO B660M-P DDR4 LGA1700 Micro-ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
£45.74 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

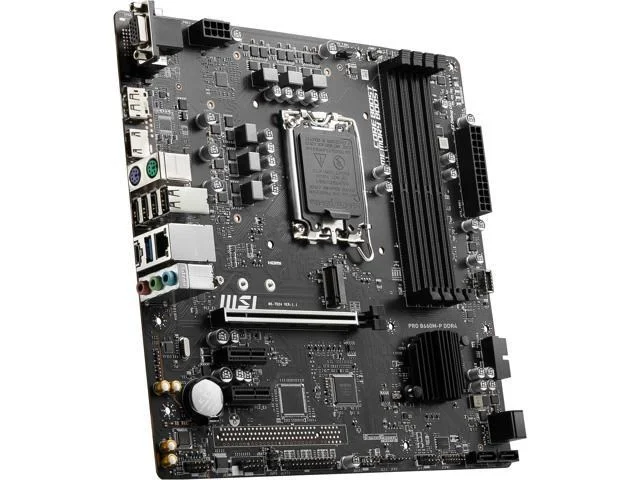

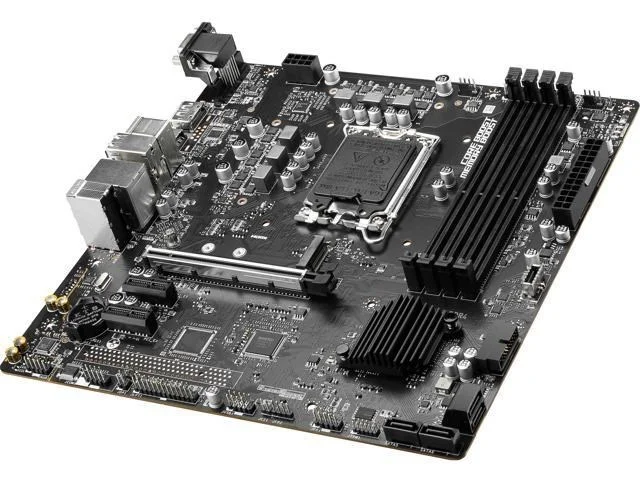

The MSI PRO B660M-P DDR4 is a Micro-ATX motherboard for LGA1700. It supports DDR4 memory up to 4600 MT/s (OC).
- MSI PRO B660M-P DDR4 LGA 1700 Intel B660 SATA 6Gb/s Micro ATX Intel Motherboard Memory Standard: DDR4 1R 3200 / 2666 / 2133 (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4600+ 1DPC 2R Max speed up to 4000+ 2DPC 1R Max speed up to 4000+ 2DPC 2R Max speed up to 3600+ Number of Memory Slots: 4x288pin (DDR4) Audio Chipset: Realtek ALC897 PCI Express 4.0 x16: 1 x PCI Express 4.0 x16 * Actual support may vary by CPU. Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: 10/100/1000Mbps CPU Type: Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors Maximum Memory Supported: 128GB
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | PRO B660M-P DDR4 |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel B660 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-4000 / DDR4-4200 / DDR4-4266 / DDR4-4400 / DDR4-4600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

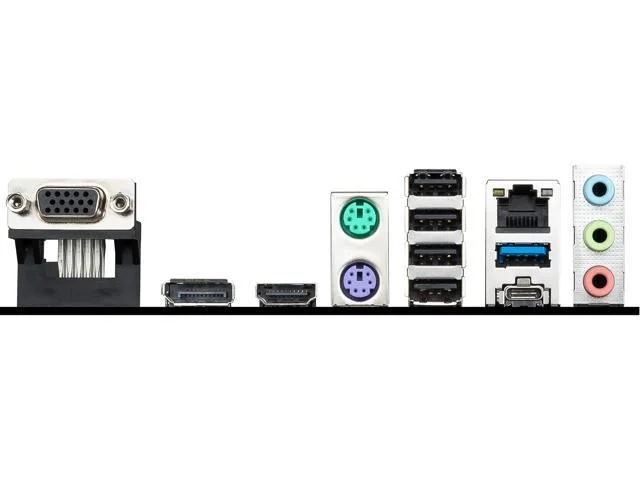

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 0 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRO B660M-P DDR4 |
| SKU Code | PRO B660M-P DDR4 |
| GTIN / EAN | 824142286692 |
Price History (last 12 months)
Plots available price points within the past 12 months.
