Description

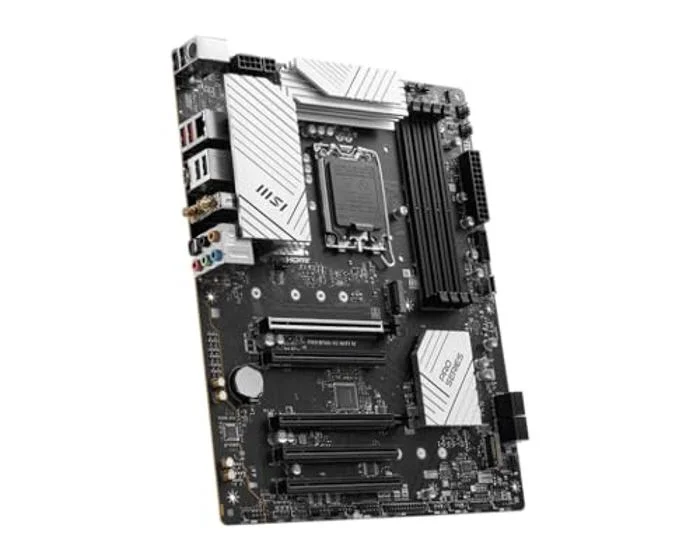

The MSI PRO B760-VC WiFi IV is a ATX motherboard for LGA1700. It supports DDR5 memory up to 7000 MT/s (OC).
- Support Intel Core 14th/13th/12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC)
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | PRO B760-VC WIFI IV |
| Launch Date | April 2024 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel B760 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 5 × PCIe x16 |
| PCIe x16 (Qty) | 5 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 7 (802.11be) |

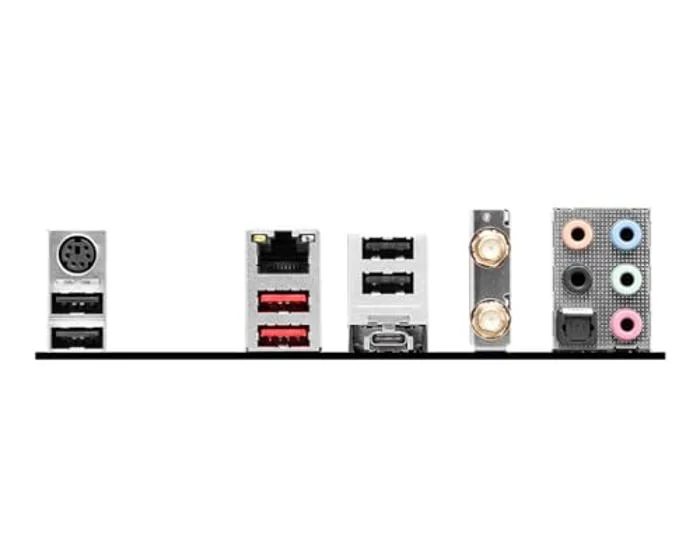

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRO B760-VC WIFI IV |
| SKU Code | PRO B760-VC WIFI IV |
| GTIN / EAN | 824142358122 |
