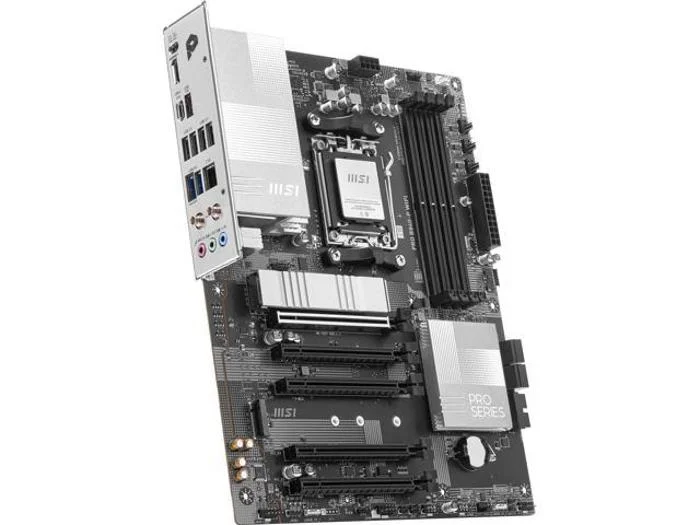

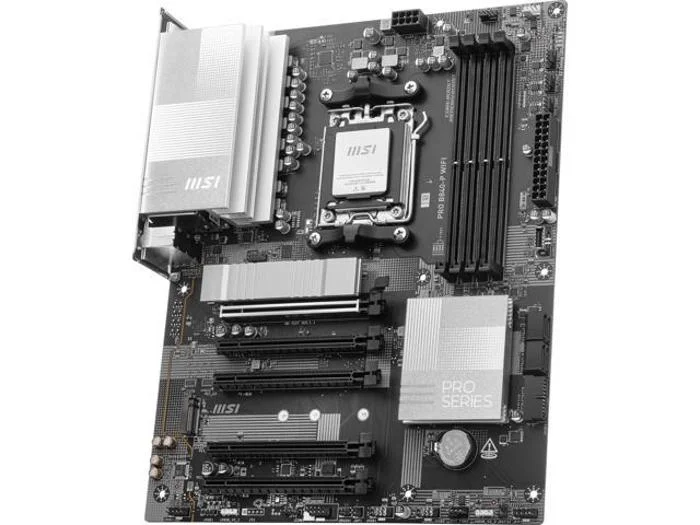

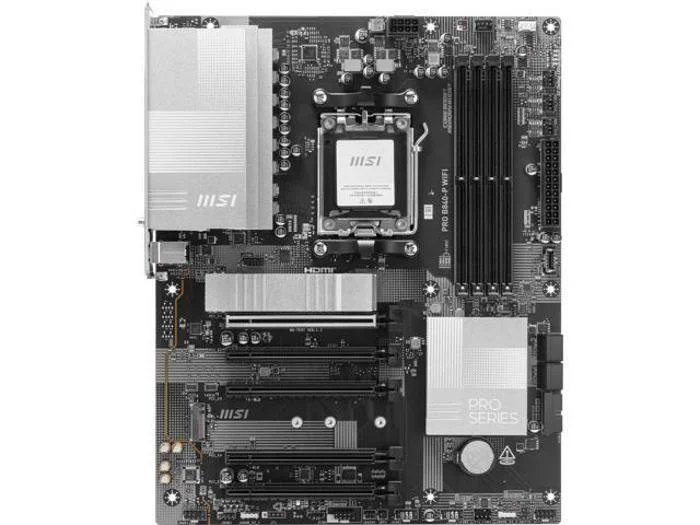

MSI PRO B840-P WIFI AM5 ATX DDR5 256 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI PRO B840-P WIFI is a ATX motherboard for AM5. It supports DDR5 memory up to 8000 MT/s (OC).
- MSI PRO B840-P WIFI AM5 AMD B840 SATA 6Gb/s 2.5G Network Wi-Fi 7 DDR5 ATX Motherboard Number of Memory Slots: 4x288pin (DDR5) PCI Express 3.0 x16: 1 x PCI Express 3.0 x16 Audio Chipset: Realtek ALC897 PCI Express x1: 3 x PCI Express 3.0 x1 Audio Channels: 7.1 Channels Max LAN Speed: 2.5Gbps Maximum Memory Supported: 256GB Channel Supported: Dual Channel
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | PRO B840-P WIFI |
| Launch Date | January 2025 |
| CPU Socket | AM5 |
| Chipset Model | Intel B840 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 / DDR5-7900 / DDR5-7950 / DDR5-8000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 5 × PCIe x16 |
| PCIe x16 (Qty) | 5 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 - M Key, 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 7 (802.11be) |

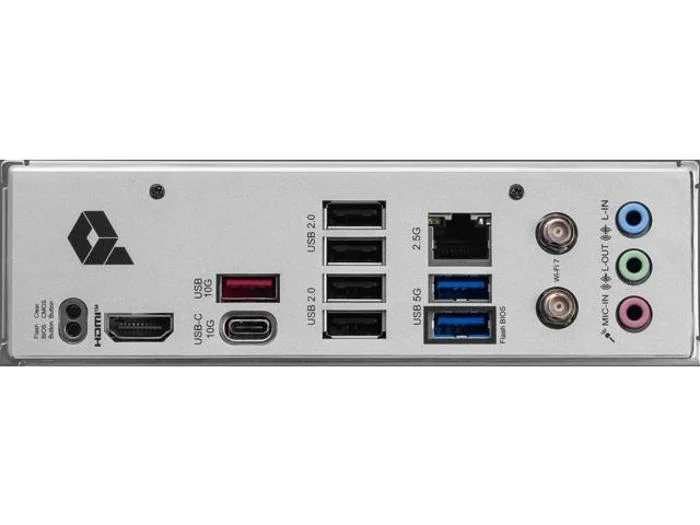

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRO B840-P WIFI |
| SKU Code | PRO B840-P WIFI |
| GTIN / EAN | 824142392973 |
