MSI PRO B850M-P WiFi AM5 Micro-ATX DDR5 256 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

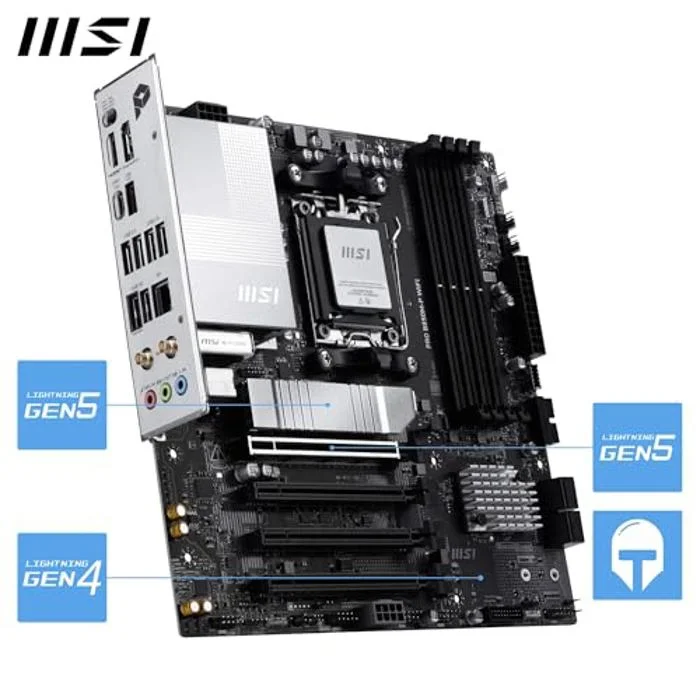

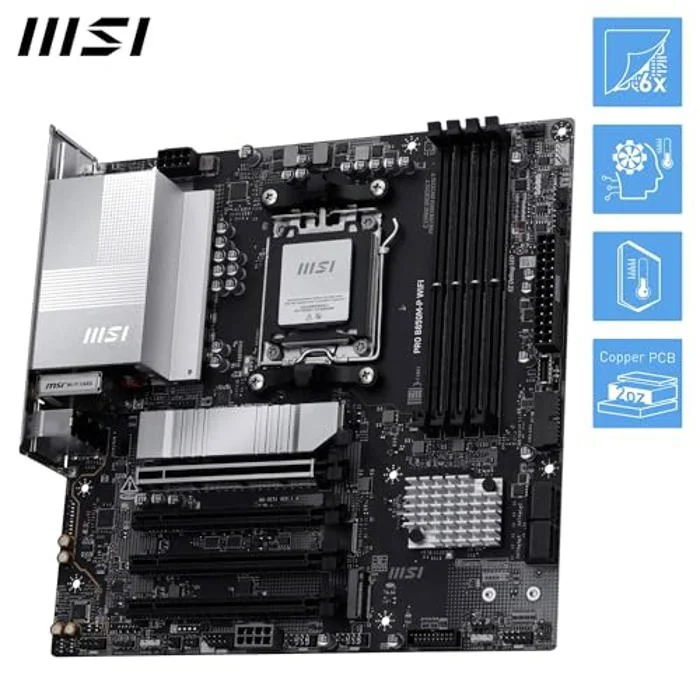

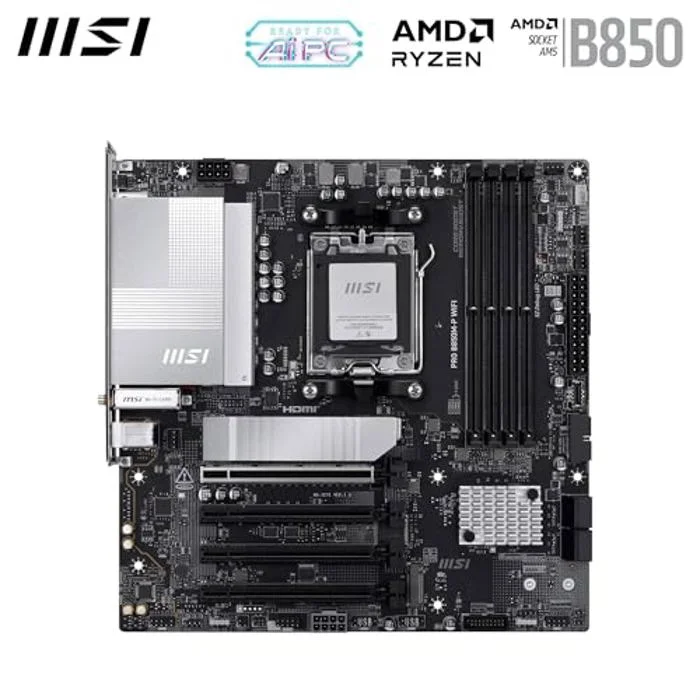

The MSI PRO B850M-P WiFi is a Micro-ATX motherboard for AM5. It supports DDR5 memory up to 8200 MT/s (OC).
- ULTRA POWER - SUPPORTS THE LATEST RYZEN 9000 PROCESSORS IN HIGH PERFORMANCE - The PRO B850M-P WIFI employs a Direct 7 Phase (P-PAK) VRM for the AMD B850 chipset (AM5, Ryzen 9000 / 8000 / 7000) with Core Boost architecture

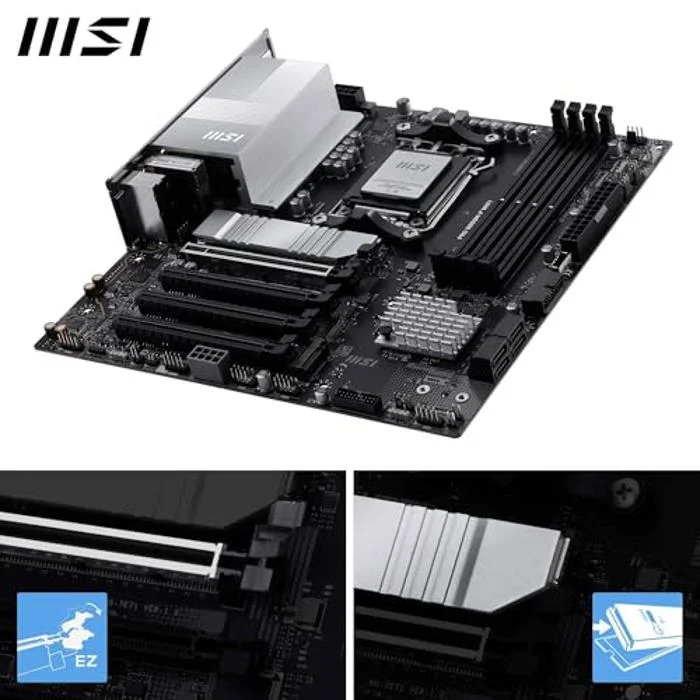

- FROZR GUARD - Excellent cooling features such as 7W/mK MOSFET thermal pads, extra choke thermal pads and an Extended Heatsink; Includes chipset heatsink, EZ M.2 Shield Frozr II, a Combo-fan (for pump & system) header (3A)
- DDR5 MEMORY, PCIe 5.0 x16 SLOTS - 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 8200+ MT/s OC); 1 x PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor supports cutting-edge graphics cards
- TRIPLE M.2 CONNECTORS - Storage options include 1 x M.2 Gen5 x4 128Gbps slot with EZ M.2 Shield Frozr II to prevent thermal throttling, 1 x M.2 Gen4 x4 64Gbps slot and 1 x M.2 Gen4 x2 32Gbps slot

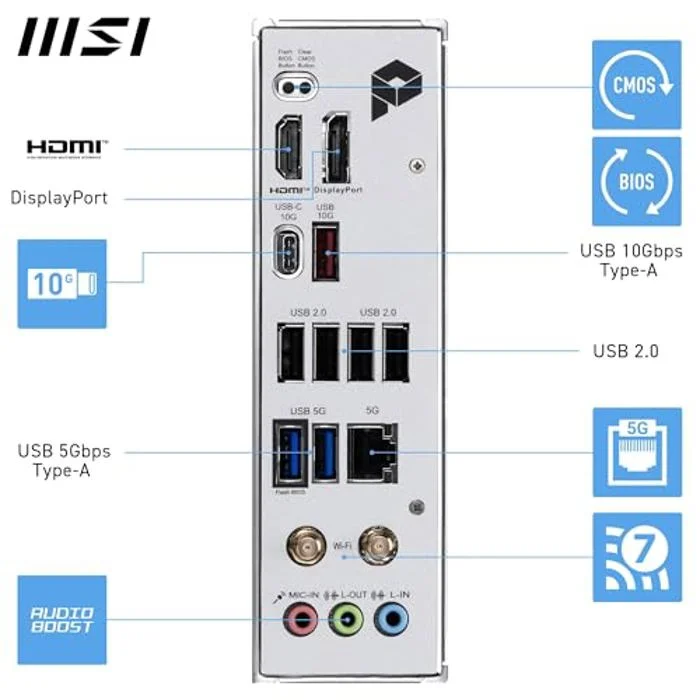

- HIGH-SPEED CONNECTIVITY - Network hardware includes a Wi-Fi 7 module with Bluetooth 5.4 & 5Gbps LAN; Rear ports include USB 10Gbps Type-C and 7.1 HD Audio with Audio Boost
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | PRO B850M-P WIFI |
| Launch Date | May 2025 |
| CPU Socket | AM5 |
| Chipset Model | Intel B850 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5600 / DDR5-6000 / DDR5-6400 / DDR5-8200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 4 × PCIe x16 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2280 - M Key |
| SATA III Ports | 0 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 7 (802.11be) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRO B850M-P WIFI |
| SKU Code | PRO B850M-P WIFI |
| GTIN / EAN | 824142426722 |
