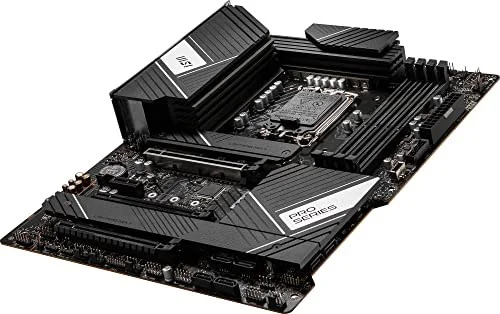

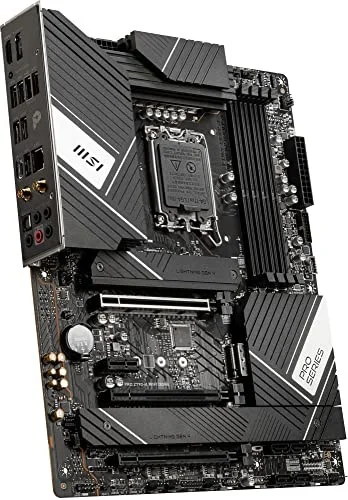

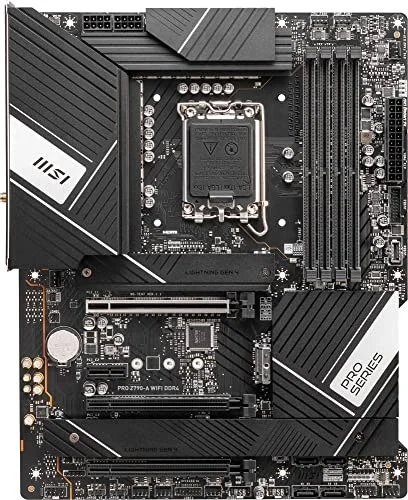

MSI PRO Z790-A WIFI DDR4 LGA1700 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
$29.99 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI PRO Z790-A WIFI DDR4 is a ATX motherboard for LGA1700. It supports DDR4 memory up to 5333 MT/s (OC).
- MSI PRO Z790-A WIFI DDR4 LGA 1700 Intel Z790 SATA 6Gb/s DDR4 ATX Motherboard Memory Standard: Supports 1R 2133/2666/3200 MHz (by JEDEC & POR) Max overclocking frequency: - 1DPC 1R Max speed up to 5333+ MHz - 1DPC 2R Max speed up to 4800+ MHz - 2DPC 1R Max speed up to 4400+ MHz - 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) Number of Memory Slots: 4x288pin (DDR4) Audio Chipset: Realtek ALC4080 PCI Express 5.0 x16: PCI_E1 slot (From CPU) - supports up to PCIe 5.0 x16 PCI Express 4.0 x16: PCI_E3 slot (From Z790 Chipset) - supports up to PCIe 4.0 x4 PCI Express 3.0 x16: PCI_E4 slot (From Z790 Chipset) - supports up to PCIe 3.0 x1 Max LAN Speed: 2.5Gbps CPU Type: Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | PRO Z790-A WIFI DDR4 7E07-001R |
| Launch Date | October 2022 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z790 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4266 / DDR4-4400 / DDR4-4533 / DDR4-4600 / DDR4-4800 / DDR4-5000 / DDR4-5066 / DDR4-5200 / DDR4-5333 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 5 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRO Z790-A WIFI DDR4 |
| SKU Code | PRO Z790-A WIFI DDR4 |
| GTIN / EAN | 824142301388 |
