MSI PRO Z790-P WIFI LGA1700 ATX DDR5 192 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI PRO Z790-P WIFI is a ATX motherboard for LGA1700. It supports DDR5 memory up to 6800 MT/s (OC).
- MSI PRO Z790-P WIFI LGA 1700 Intel Z790 SATA 6Gb/s DDR5 ATX Motherboard Memory Standard: Supports 1R 5600 MHz (by JEDEC & POR) Max. overclocking frequency: - 1DPC 1R Max speed up to 7000+ MHz - 1DPC 2R Max speed up to 6400+ MHz - 2DPC 1R Max speed up to 6400+ MHz - 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory Number of Memory Slots: 4x288pin (DDR5) Audio Chipset: Realtek ALC897 PCI Express 5.0 x16: PCI_E1 slot (From CPU) - Supports up to PCIe 5.0 x16 PCI Express 4.0 x16: PCI_E3 slot (From Z790 chipset) - PCI_E3 supports up to PCIe 4.0 x4 PCI Express 3.0 x16: PCI_E4 slot (From Z790 chipset) - PCI_E4 supports up to PCIe 3.0 x1 Max LAN Speed: 2.5Gbps CPU Type: Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | PRO Z790-P WIFI |
| Launch Date | October 2022 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z790 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 5 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |

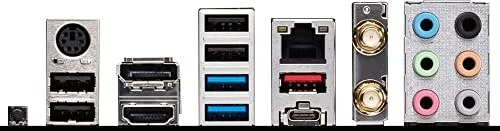

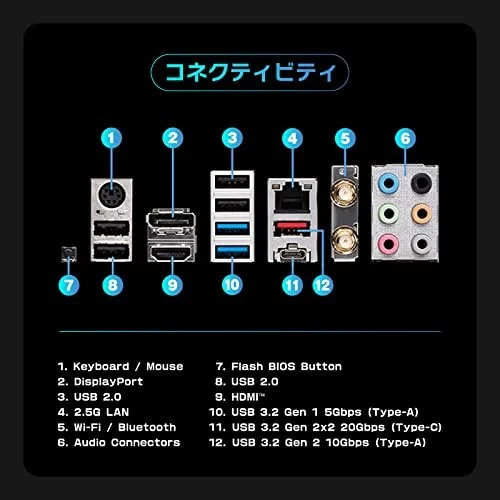

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRO Z790-P WIFI |
| SKU Code | PRO Z790-P WIFI |
| GTIN / EAN | 824142302125 |
