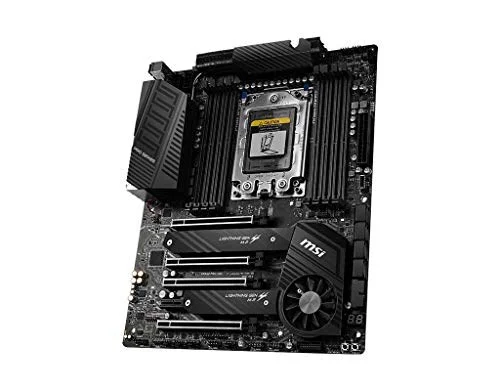

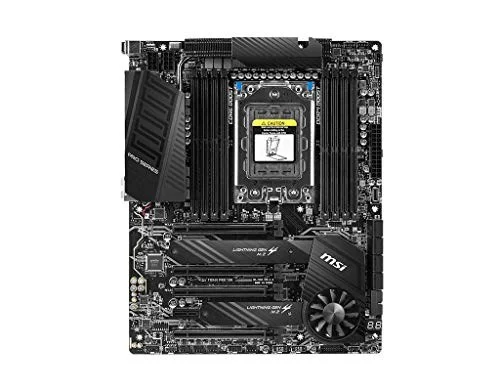

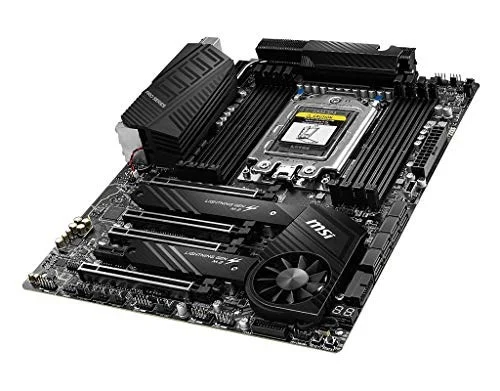

MSI TRX40 PRO 10G sTRX4 ATX DDR4 256 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
$29.99 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI TRX40 PRO 10G is a ATX motherboard for sTRX4. It supports DDR4 memory up to 4666 MT/s (OC).
- Core Boost: With Premium Layout And Fully Digital Power Design To Support More Cores And Provides Better Performance.
- Frozr Heatsink: Designed With The Patented Fan And Double Ball Bearings To Provide Best Performance For Enthusiast Games And Prosumers.
- Lightning USB 20G: ASM3242 USB 3.2 Gen2x2 Controller Offers The Fastest USB Speeds With Stability.
- Lightning Gen4: The Latest Gen4 PCI-E And M.2 Solution With Up To 64GB/S Bandwidth For Minimum Transfer Speed.
- Dual LAN: Dual Premium Network Solution For Both Intranet And Internet, Offering A Smooth Gaming Experience For Effective Network Connection
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | TRX40 PRO 10G |
| Launch Date | November 2019 |
| CPU Socket | sTRX4 |
| Chipset Model | TRX40 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-3200 / DDR4-3600 / DDR4-4000 / DDR4-4666 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 4 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

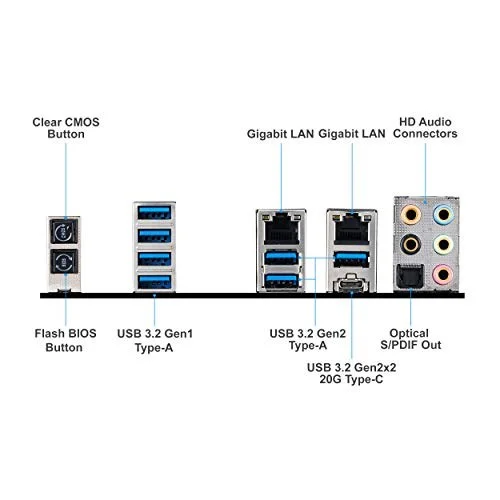

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | TRX40 PRO 10G |
| SKU Code | TRX40 PRO 10G |
| GTIN / EAN | 824142201350 |
