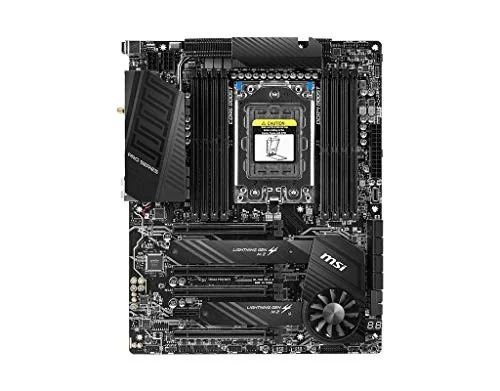

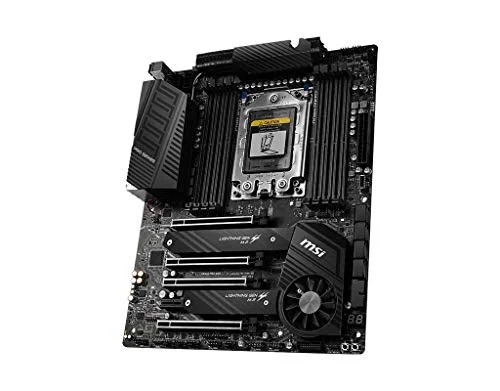

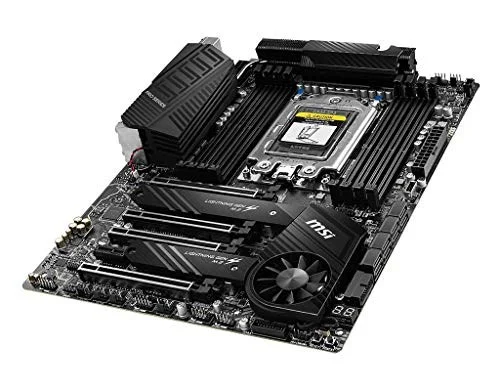

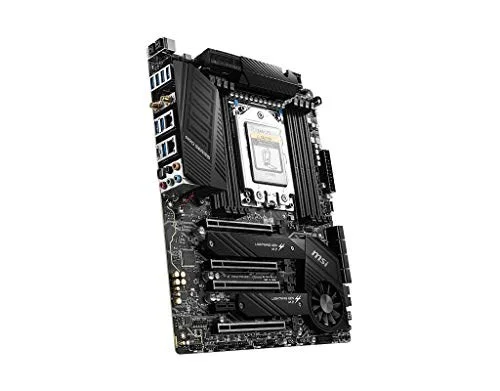

MSI TRX40 PRO WIFI sTRX4 ATX DDR4 256 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI TRX40 PRO WIFI is a ATX motherboard for sTRX4. It supports DDR4 memory up to 4666 MT/s (OC).
- Core Boost: With Premium Layout And Fully Digital Power Design To Support More Cores And Provides Better Performance.
- Extended Heatsink: MSI Extended PWM Heatsink And Enhanced Circuit Design Ensures Even High-End Processors To Run In Full Speed.
- Wi-Fi 6: The Latest Wireless Solution Supports MU-MIMO And Bss Color Technology, Delivering Speeds Up To 2400Mbps.
- Dual LAN: Dual Premium Network Solution For Both Intranet And Internet, Offering A Smooth Gaming Experience For Effective Network Connection
- M. 2 Expander-Z: Offers Two Extra M. 2 Slots To Increase Your Storage Capacity At Maximum Speed.
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | TRX40 PRO WIFI |
| Launch Date | November 2019 |
| CPU Socket | sTRX4 |
| Chipset Model | TRX40 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-3200 / DDR4-3600 / DDR4-4000 / DDR4-4666 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 4 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

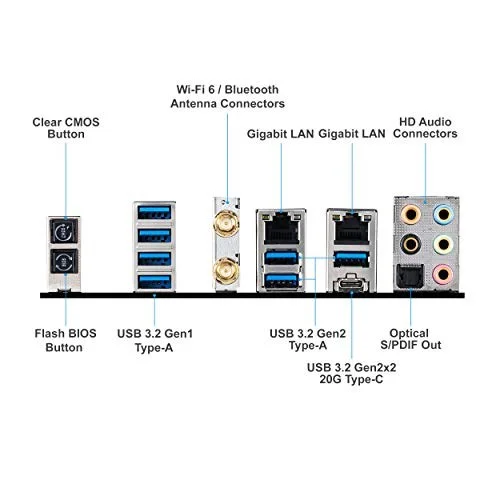

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | TRX40 PRO WIFI |
| SKU Code | TRX40 PRO WIFI |
| GTIN / EAN | 824142201367 |
