MSI X299 PRO LGA2066 ATX DDR4 256 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
$29.99 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI X299 PRO is a ATX motherboard for LGA2066. It supports DDR4 memory up to 4200 MT/s (OC).
- Supports DDR4 Memory, 8 Dimms, Quad Channel Max Frequency DDR4-4200+(OC)
- Twin Turbo M.2 : Running At PCI-E Gen3 X4 Maximizes Performance For Nvme Based Ssds.
- Extended Heatsink Design : MSI Extended PWM And Enhanced Circuit Design Ensures Even High-End Processors To Run In Full Speed
- Lightning USB 20G : Powered By Asmedia ASM3242 USB 3.2 Gen2x2 Controller, Offers The Fastest USB Speeds With Stability
- Audio Boost 4 : Reward Your Ears With Studio Grade Sound Quality
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | X299 PRO 7B94-001R |
| Launch Date | January 2020 |
| CPU Socket | LGA2066 |
| Chipset Model | Intel X299 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-4000 / DDR4-4200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 4 × PCIe x16 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

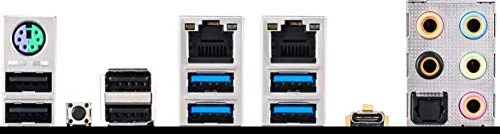

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | X299 PRO |
| SKU Code | X299 PRO |
| GTIN / EAN | 824142198766 |
