Description

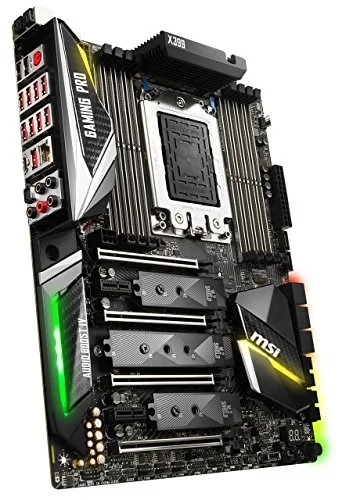

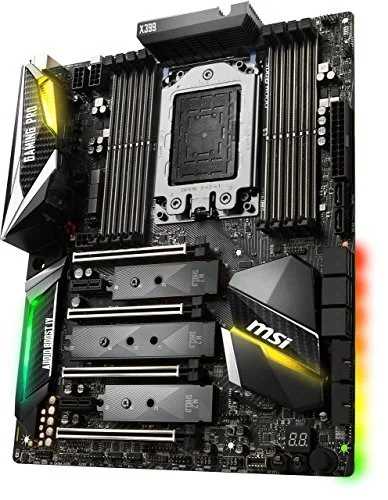

The MSI X399 GAMING PRO CARBON AC is a ATX motherboard for sTR4. It supports DDR4 memory up to 3600 MT/s (OC).
- Supports AMD Ryzen ThreadRipper Processor for Socket TR4
- 8x DDR4 memory slots supporting up to 128GB, Support for DDR4 33/2400/2666(OC)/2933(OC)/3200(OC) MHz memory modules
- 13 Phase DrMOS Power Design (10+3)
- Swappable Heatsink Covers
- 3x M.2 Shield v2
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | X399 GAMING PRO CARBON AC |
| Launch Date | August 2017 |
| CPU Socket | sTR4 |
| Chipset Model | Intel X399 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3333 / DDR4-3466 / DDR4-3600 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 4 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |

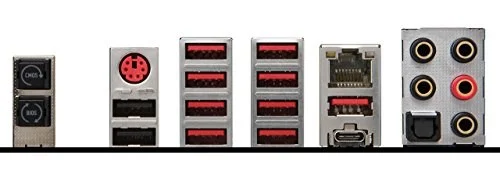

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | X399 GAMING PRO CARBON AC |
| SKU Code | X399 GAMING PRO CARBON AC |
| GTIN / EAN | 824142151051 |
