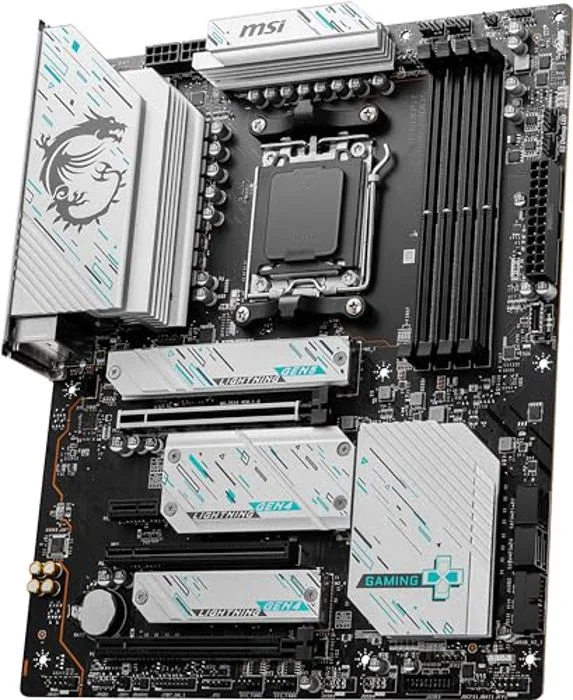

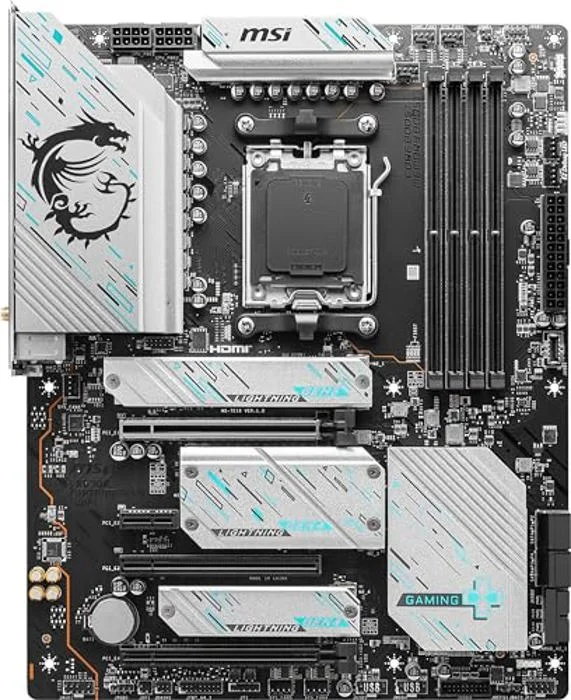

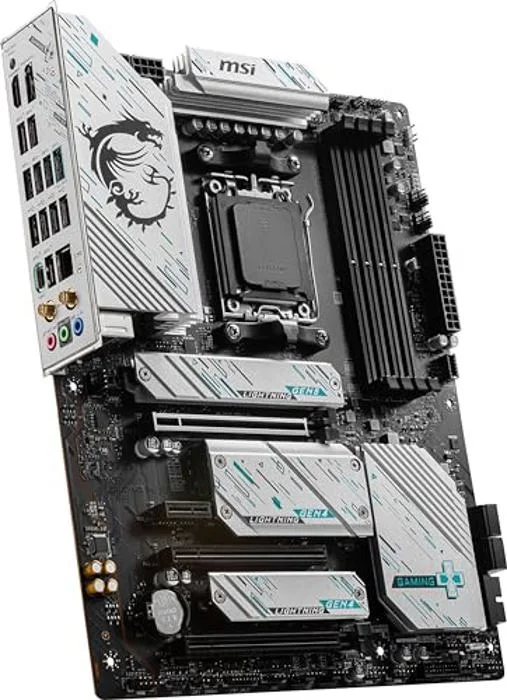

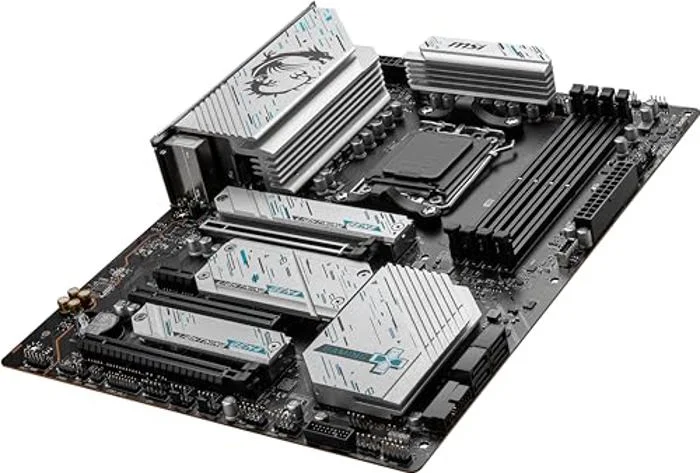

MSI X670E Gaming Plus WiFi AM5 ATX DDR5 192 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI X670E Gaming Plus WiFi is a ATX motherboard for AM5. It supports DDR5 memory up to 7800 MT/s (OC).
- Supports AMD Ryzen 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 7800+(OC) MHz
- Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen5 M.2, USB 3.2 Gen 2x2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | X670E GAMING PLUS WIFI 7E16-003R 911-7E16-003 X670EGAMPLUSWIFI 7E16-001R 911-7E16-002 |
| Launch Date | January 2024 |
| CPU Socket | AM5 |
| Chipset Model | Intel X670E |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 5 × M.2 |
| M.2 Device Compatibility | 2280 / 22110 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |

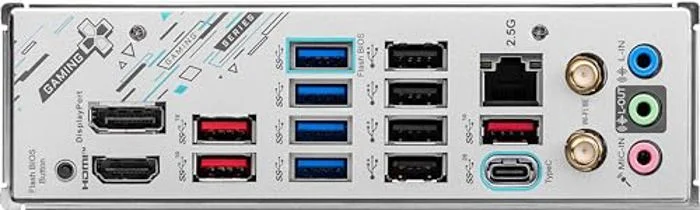

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | X670E GAMING PLUS WIFI |
| SKU Code | X670E GAMING PLUS WIFI |
| GTIN / EAN | 824142345986 |
Price History (last 12 months)
Plots available price points within the past 12 months.
