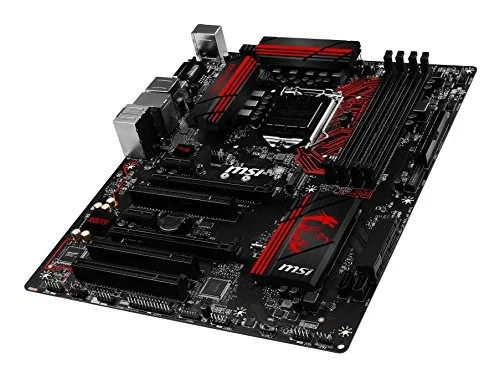

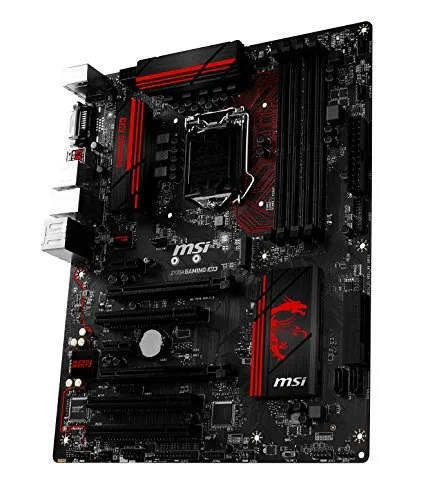

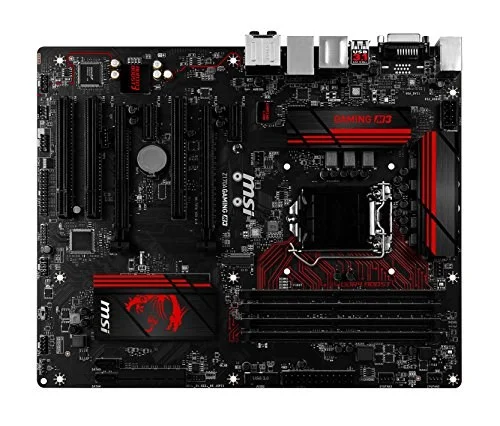

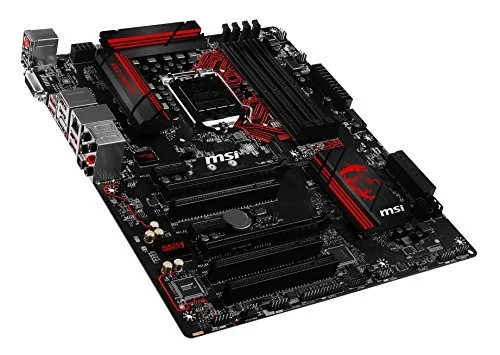

MSI Z170A GAMING M3 LGA1151 ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI Z170A GAMING M3 is a ATX motherboard for LGA1151. It supports DDR4 memory up to 3200 MT/s (OC).
- Supports 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket
- Supports DDR4-3600+(OC) Memory
- DDR4 Boost: Give your DDR4 memory a performance boost
- USB 3.1 Gen2 2X FASTER: USB 3.1 Gen2 offers performance twice as fast as a regular USB 3.0 connection
- Turbo M.2 32Gb/s + Turbo U.2 ready + USB 3.1 Gen2 Type-A + SATA 6Gb/s
- GAMING LAN with LAN Protect, powered by Killer: The best online gaming experience with lowest latency
- Audio Boost 3: Reward your ears with studio grade sound quality
- Nahimic Audio Enhancer: Immersive sound quality that pushes the limits of reality
- Game Boost: This one goes up to eleven; generate more FPS in games with 1 push of a button
- GAMING Hotkey: Launch your favorite games with a single button
- OBS Streaming software: Share your gaming achievements with the world!
- SteelSeries Certified: Optimized for SteelSeries gaming gear
- Military Class 5: The latest evolution in high quality components featuring the brand new Titanium Chokes
- MULTI-GPU with VGA Armor: VGA Armor PCI-E slots. Supports AMD Crossfire
- Click BIOS 5: Award-winning brand new Click BIOS 5 with high resolution scalable font
- GAMING CERTIFIED: 24-hour on- and offline game testing by eSports players for the best gaming experience
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | Z170A GAMING M3 7978-001R |
| Launch Date | September 2015 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z170 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2800 / DDR4-3000 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 2 × SATA 6Gbps |
| SATA Express Ports | 2 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

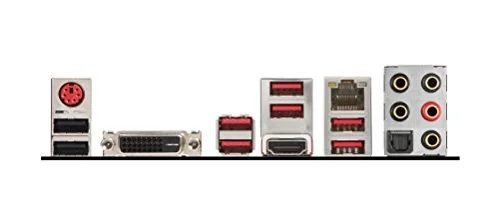

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z170A GAMING M3 |
| SKU Code | Z170A GAMING M3 |
| GTIN / EAN | 801963945267 |
