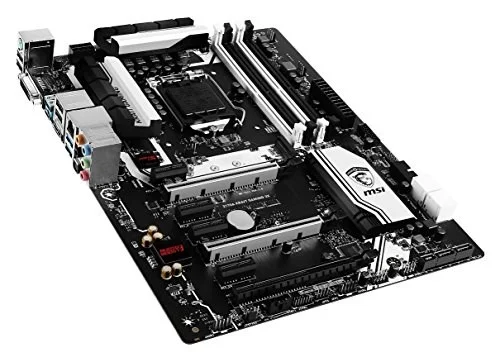

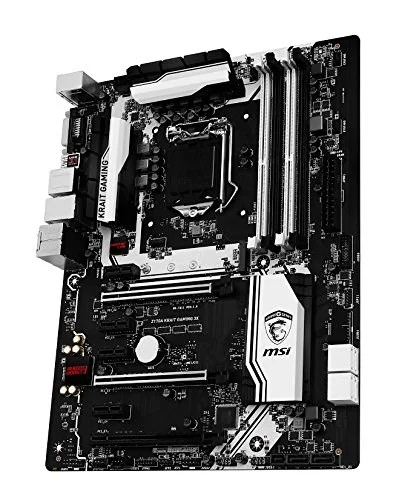

MSI Z170A Krait Gaming 3X LGA1151 ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI Z170A Krait Gaming 3X is a ATX motherboard for LGA1151. It supports DDR4 memory up to 3600 MT/s (OC).
- LGA1151, Supports 6th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
- Chipset: Intel Z170
- Memory: 4x DDR4-3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 DIMM Slots, Dual Channel, ECC, Unbuffered, Max Capacity of 64GB
- Slots: 3x PCI-Express 3.0 x16 Slots (run at x16/x0/x4 or x8/x8/x4), 4x PCI-Express 3.0 x1 Slots
- SATA: 6x SATA3 Ports (2 ports are compatible with SATA Express Port), Support RAID 0, 1, 5, 10; 1x SATA Express Ports (PCI-Express 3.0 x2)
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | Z170A KRAIT GAMING 3X |
| Launch Date | August 2015 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z170 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 4 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 4 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 1 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

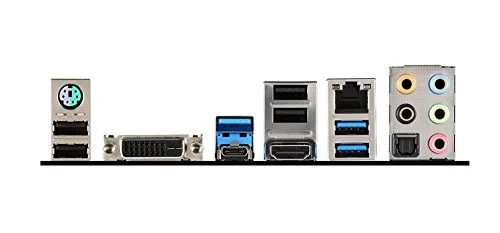

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z170A KRAIT GAMING 3X |
| SKU Code | Z170A KRAIT GAMING 3X |
| GTIN / EAN | 824142126639 |
