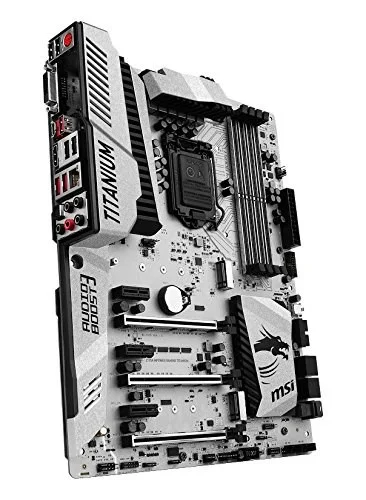

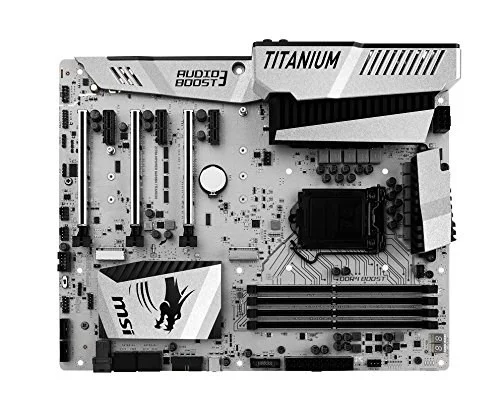

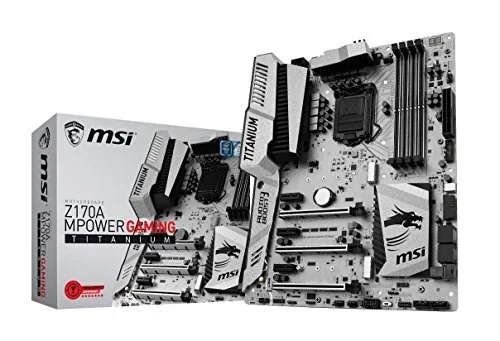

MSI Z170A MPOWER GAMING TITANIUM LGA1151 ATX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI Z170A MPOWER GAMING TITANIUM is a ATX motherboard for LGA1151. It supports DDR4 memory up to 3600 MT/s (OC).
- Supports 6th generation Intel Core i7/ i5/ i3/ Pentium/ Celeron processors
- Memory: 4x ddr4-3600(oc)/ 3200(OC)/ 3000(oc)/ 2800(OC)/ 2600(oc)/ 2400/ 2133 MHz DIMM slots, Quad channel, NON-ECC, Unbuffered, max capacity of 64GB
- Slots: 3x PCI-Express 3.0 x16 slots, 3x PCI-Express 3.0 x1 slots
- Multi-Graphics: supports AMD 3-Way CrossFireX and NVIDIA 2-Way SLI technology
- LAN: Intel i219 Gigabit Ethernet controller
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | Z170A MPOWER GAMING TITANIUM |
| Launch Date | |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z170 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

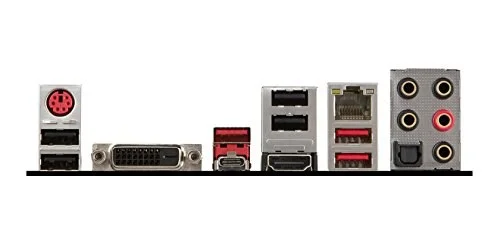

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | Yes |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z170A MPOWER GAMING TITANIUM |
| SKU Code | Z170A MPOWER GAMING TITANIUM |
| GTIN / EAN | 824142131503 |
