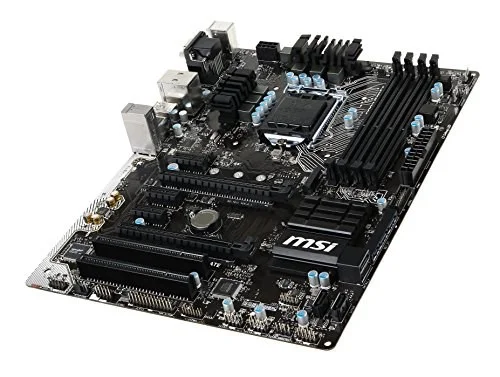

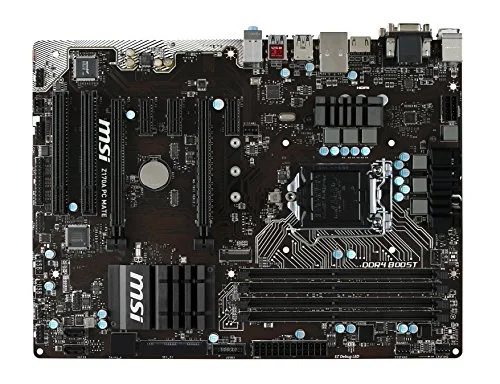

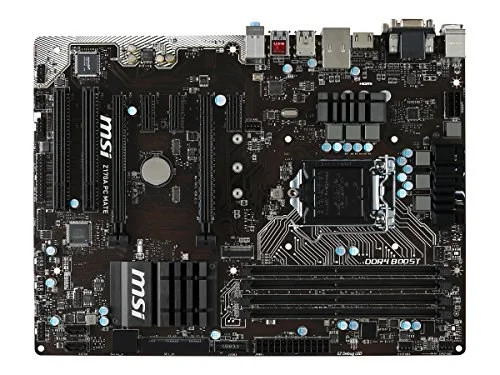

MSI Z170A PC MATE LGA1151 ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI Z170A PC MATE is a ATX motherboard for LGA1151. It supports DDR4 memory up to 3200 MT/s (OC).
- LGA1151
- Chipset: Intel Z170 Express
- Memory: 4x DDR4-3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz DIMM Slots, Dual Channel, ECC, Unbuffered, Max Capacity of 64GB
- Slots: 2x PCI-Express 3.0 x16 Slots (run at x16, x16/ x4), 3x PCI-Express 3.0 x1 Slots, 2x PCI Slots
- Multi-Graphics: Supports AMD 2-Way CrossFireX Technology
- SATA: 6x SATA3 Ports (2-ports reserved for SATA Express Port), Support RAID 0, 1, 5, 10; 1x SATA Express Port (PCI-Express 3.0 x2)
- LAN: Realtek RTL8111H Gigabit Ethernet Controller
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | Z170A PC MATE 7971-001R |
| Launch Date | August 2015 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z170 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2800 / DDR4-3000 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 1 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

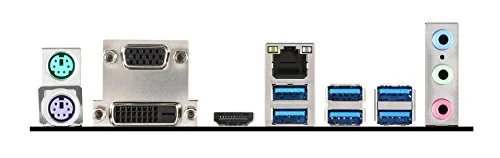

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z170A PC MATE |
| SKU Code | Z170A PC MATE |
| GTIN / EAN | 824142119365 |
