MSI Z170I GAMING PRO AC LGA1151 Mini-ITX DDR4 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

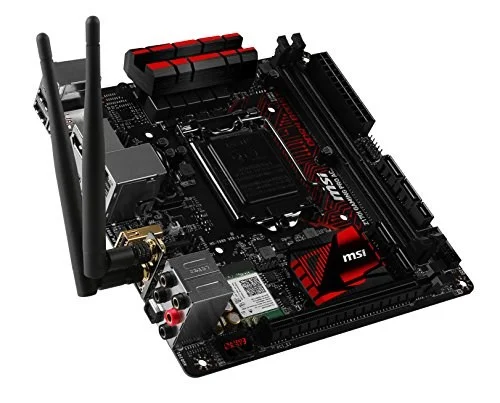

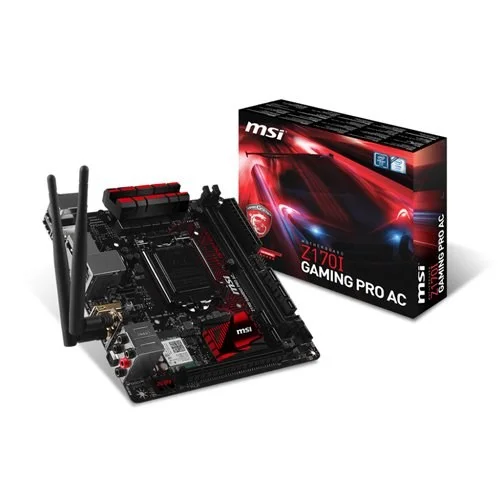

The MSI Z170I GAMING PRO AC is a Mini-ITX motherboard for LGA1151. It supports DDR4 memory up to 3200 MT/s (OC).
- Supports 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket
- Supports DDR4-4200+(OC) Memory
- DDR4 Boost: Give your DDR4 memory a performance boost

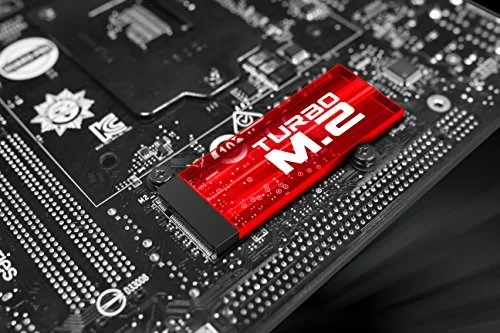

- Turbo M.2 32Gb/s: Supports 2 sizes of M.2 SSDs, on the back of the motherboard
- SATA Express 10 Gb/s + SATA 6Gb/s
- GAMING LAN powered by Intel: The best online gaming experience with lowest latency
- Audio Boost 3: Reward your ears with studio grade sound quality
- Golden USB Audio Power: Serve Stable 5V Power & Better Signal Transmission over USB
- Wi-Fi 802.11ac, Bluetooth 4.2, Supports Intel Wireless Display
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | Z170I Gaming Pro AC |
| Launch Date | October 2015 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z170 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2800 / DDR4-3000 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 - M Key |
| SATA III Ports | 2 × SATA 6Gbps |
| SATA Express Ports | 1 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z170I Gaming Pro AC |
| SKU Code | Z170I Gaming Pro AC |
| GTIN / EAN | 824142121238 |
