MSI Z170M Mortar LGA1151 Micro-ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

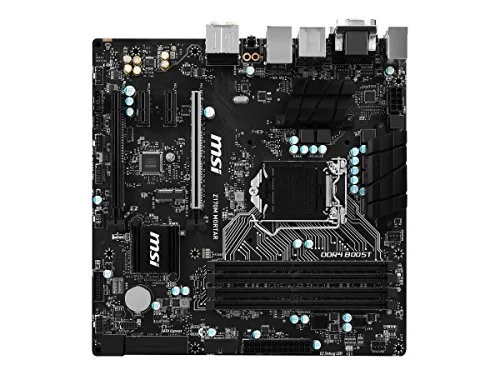

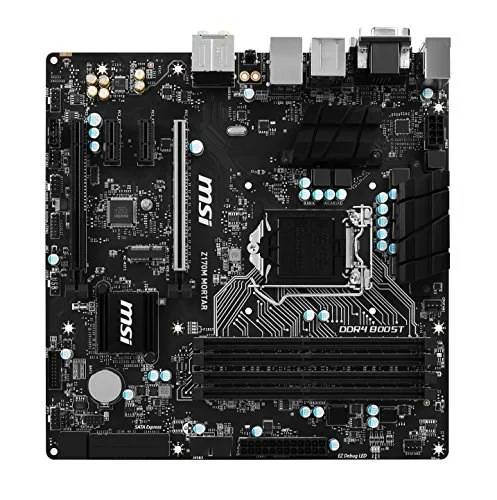

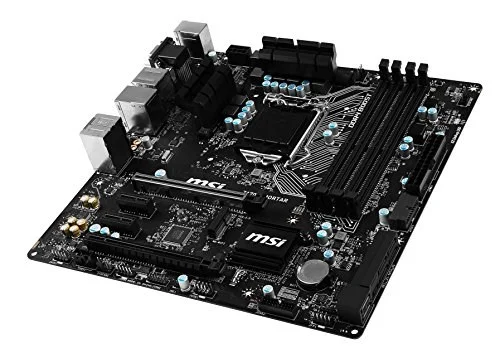

The MSI Z170M Mortar is a Micro-ATX motherboard for LGA1151. It supports DDR4 memory up to 3400 MT/s (OC).
- LGA1151 Supports 6th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors Chipset: Intel Z170
- Memory: 4x DDR4-3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 Slots, Dual Channel, ECC, Unbuffered, Max Capacity of 64GB .Install CPU/heat sink fan in the motherboard first before mount inside case, by properly installation of CPU and heat sink fan will prevent bent pin on motherboard CPU socket.
- Slots: 2x PCI-Express 3.0 x16 Slots (one runs at x4), 2x PCI-Express 3.0 x1 Slots, 1x M.2 Wi-Fi Module Slot
- Storage: 6x SATA3 Ports, Support RAID 0, 1, 5, 10; 1x SATA Express Port
- Form Factor: MicroATX, 9.6 x 9.6 inch / 24.4 x 24.4 cm
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | Z170M MORTAR |
| Launch Date | |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z170 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 1 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

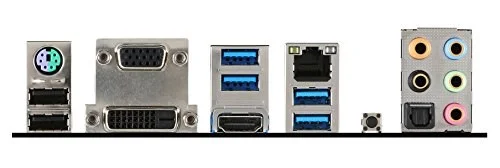

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z170M MORTAR |
| SKU Code | Z170M MORTAR |
| GTIN / EAN | 824142121207 |
