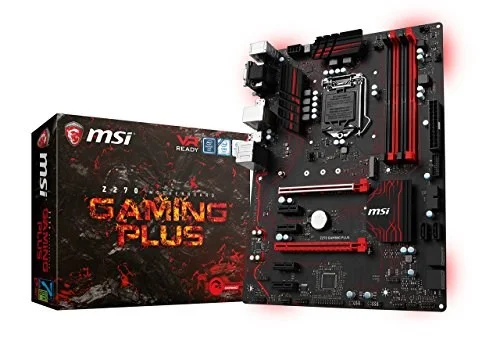

MSI Z270 GAMING PLUS LGA1151 ATX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The MSI Z270 GAMING PLUS is a ATX motherboard for LGA1151. It supports DDR4 memory up to 3800 MT/s (OC).
- Supports 7th/6th Gen Intel Core/Pentium/Celeron processors for LGA 1151 socket
- Supports DDR4-3866+(OC) Memory. Intel Optane Memory Ready. Supports 2-Way AMD Crossfire technology
- Reward your ears with studio grade sound quality for the most immersive gaming experience.Supports 7th/6th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151
- The best online gaming experience with lowest latency and bandwidth management
- Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
Specifications
| Manufacturer | MSI |
|---|---|
| Model Number | Z270 GAMING PLUS |
| Launch Date | March 2017 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z270 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3600 / DDR4-3800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 4 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 4 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z270 GAMING PLUS |
| SKU Code | Z270 GAMING PLUS |
| GTIN / EAN | 824142142899 |
